CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module Interface MN/CDM570L.IOM

13–52

Click [Refresh] to update the table (note that the index total will automatically increment to the

next available number).

13.6.2.4.7 IP | VLAN

This page is accessible only when Working Mode has been set to Managed Switch (see ‘Admin

| Mode’).

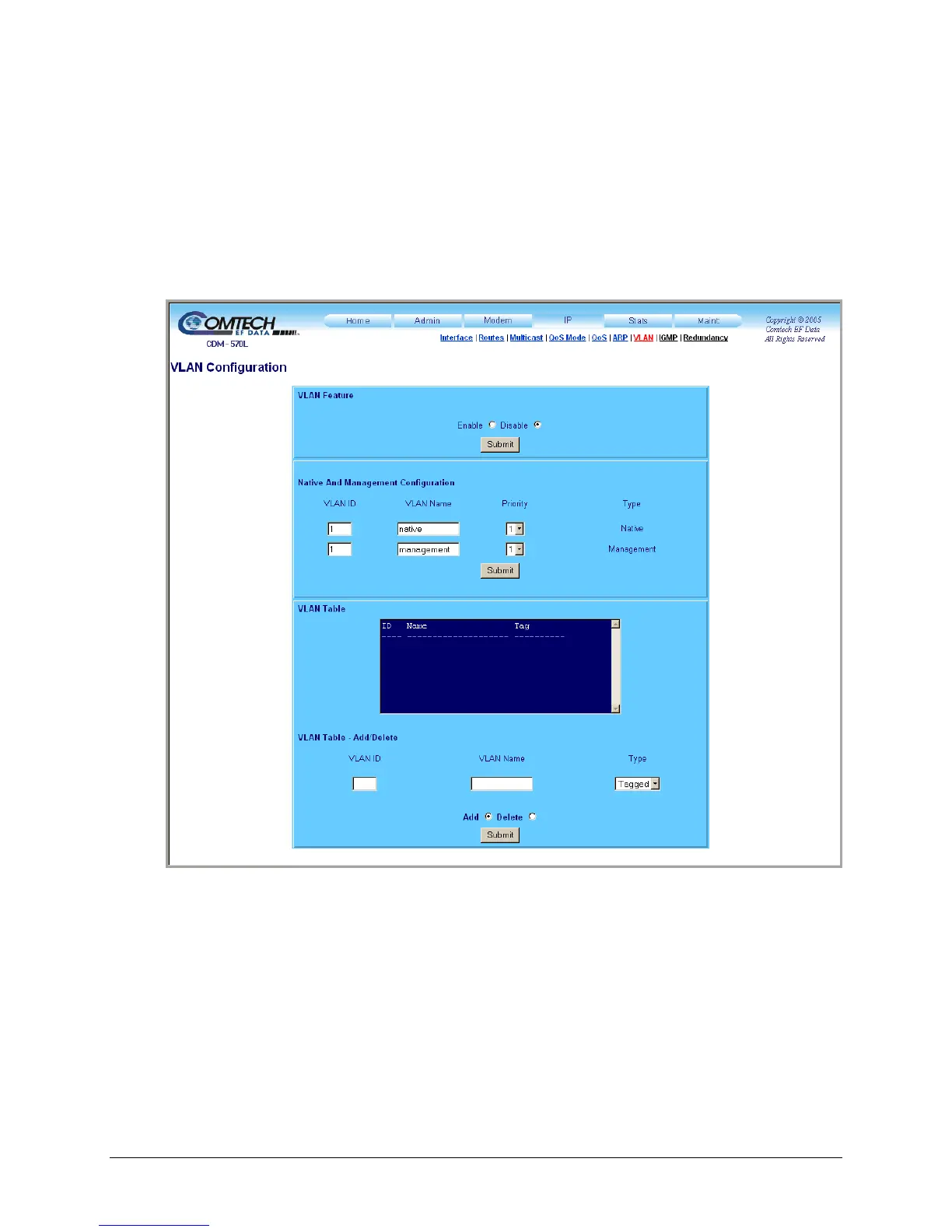

Figure 13-26. IP | VLAN page

VLAN Feature

Use the option buttons to Enable or Disable VLAN operation. Click [Submit] once the selection

has been made.

Native and Management Configuration

This section is used to configure the Native and Management VLAN IDs:
