CDM-570/570L Satellite Modem with Optional IP Module Revision 12
Appendix F MN/CDM570L.IOM
F–5
At this point the basic configuration is over and you should be able to:
Step Task
5
From PC 1: Ping 172.16.10.1 (CDM-IP 1);
Ping 172.16.10.2 (CDM-IP 2);
Ping 172.16.10.12 (PC 2).
6
From PC 2: Ping 172.16.10.2 (CDM-IP 2);
Ping 172.16.10.1 (CDM-IP 1);
Ping 172.16.10.11 (PC 1).
Do not enable IF Loopback (or link the TX to RX by a BNC cable or satellite link) on a
CDM-IP modem operating in Managed Switch Mode when connected to a LAN. In this
configuration, Managed Switch Mode will resend all layer 2 broadcast packets and
cause a “broadcast storm” on the LAN.
F.4 Router Mode Point-to-Point System Configuration
The procedures outlined in this section will lead to the configuration illustrated in Figure F-3

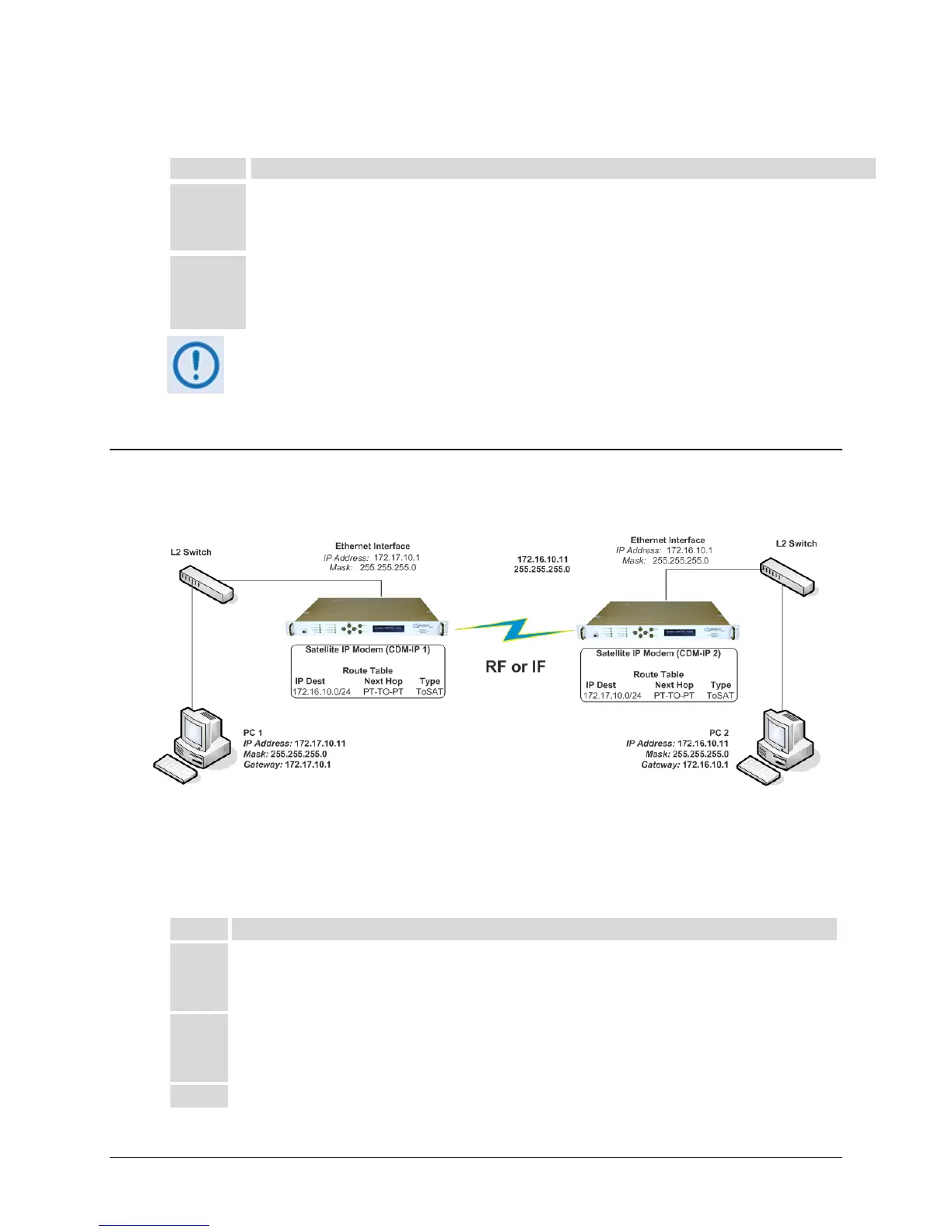

Figure F-3. Router Mode Point-to-Point System Configuration
F.4.1 PC Configuration
Step Task
1 PC 1: Set the IP address to 172.17.10.11;
Set mask to 255.255.255.0;
Set PC Gateway to 172.17.10.1.
2 PC 2: Set the IP address to 172.16.10.11;
Set mask to 255.255.255.0;
Set PC Gateway to 172.16.10.1.
3 Reboot the PCs (if required).
