CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Installation and Startup MN/CDM570L.IOM

2–3

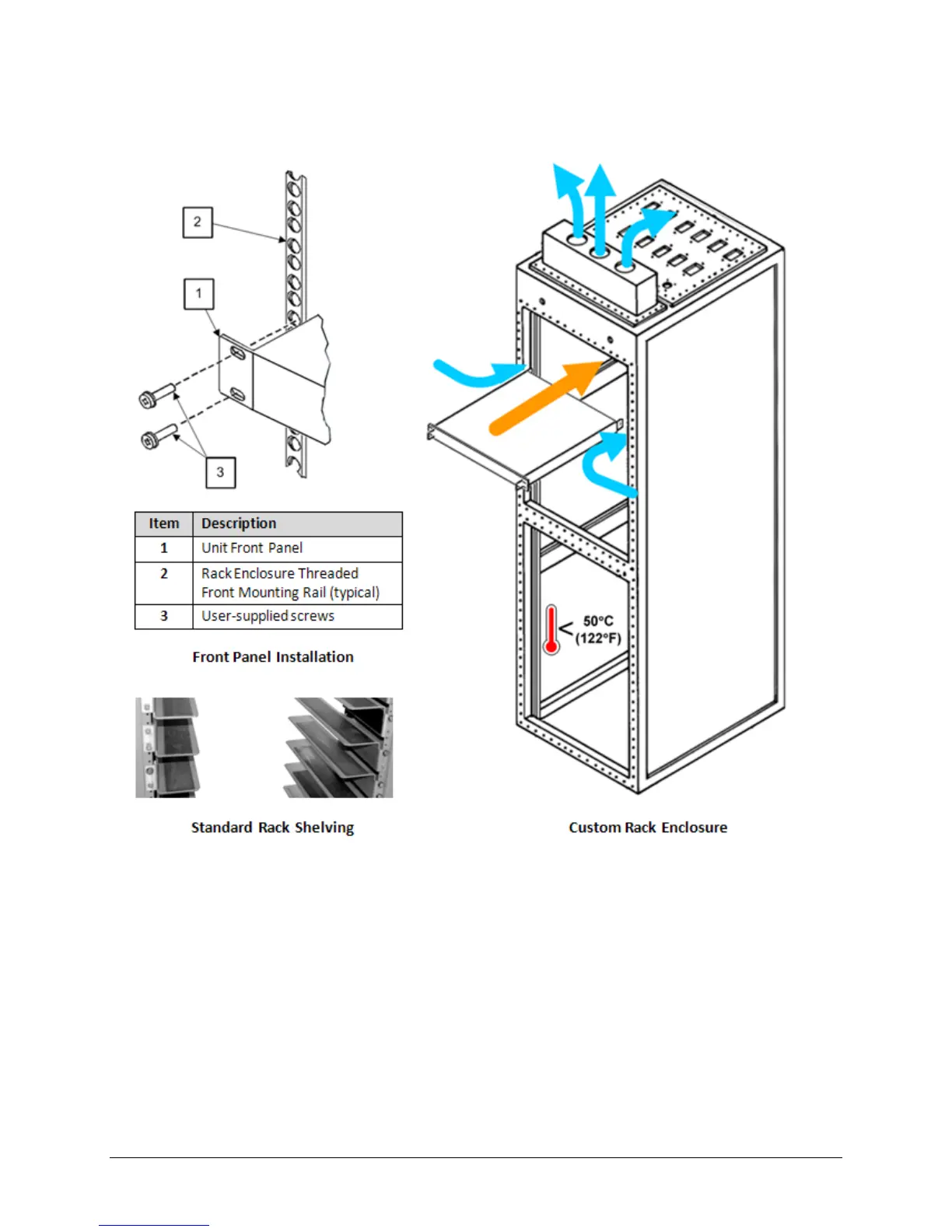

Figure 2-2. Installation into a Rack Enclosure

Mount the CDM-570/570L in its assigned position in the rack enclosure. Use, as required:

• A standard rack-mounted shelf;

• User-supplied screws to secure the front panel to the rack enclosure threaded front

mounting rails;

• Comtech EF Data’s optional

KT/6228-2 (4”) or KT/6228-3 (10”) Rear-Mounting

Support Brackets Kit
