CDM-570 Satellite Modem with Optional IP Module Revision 12

Base Modem Web Server Interface MN/CDM570L.IOM

7–6

7.3.1.2 Home | Contact

Use this page to obtain basic contact information to reach Comtech EF Data Sales and Customer

Support via phone, fax, or e-mail hyperlinks.

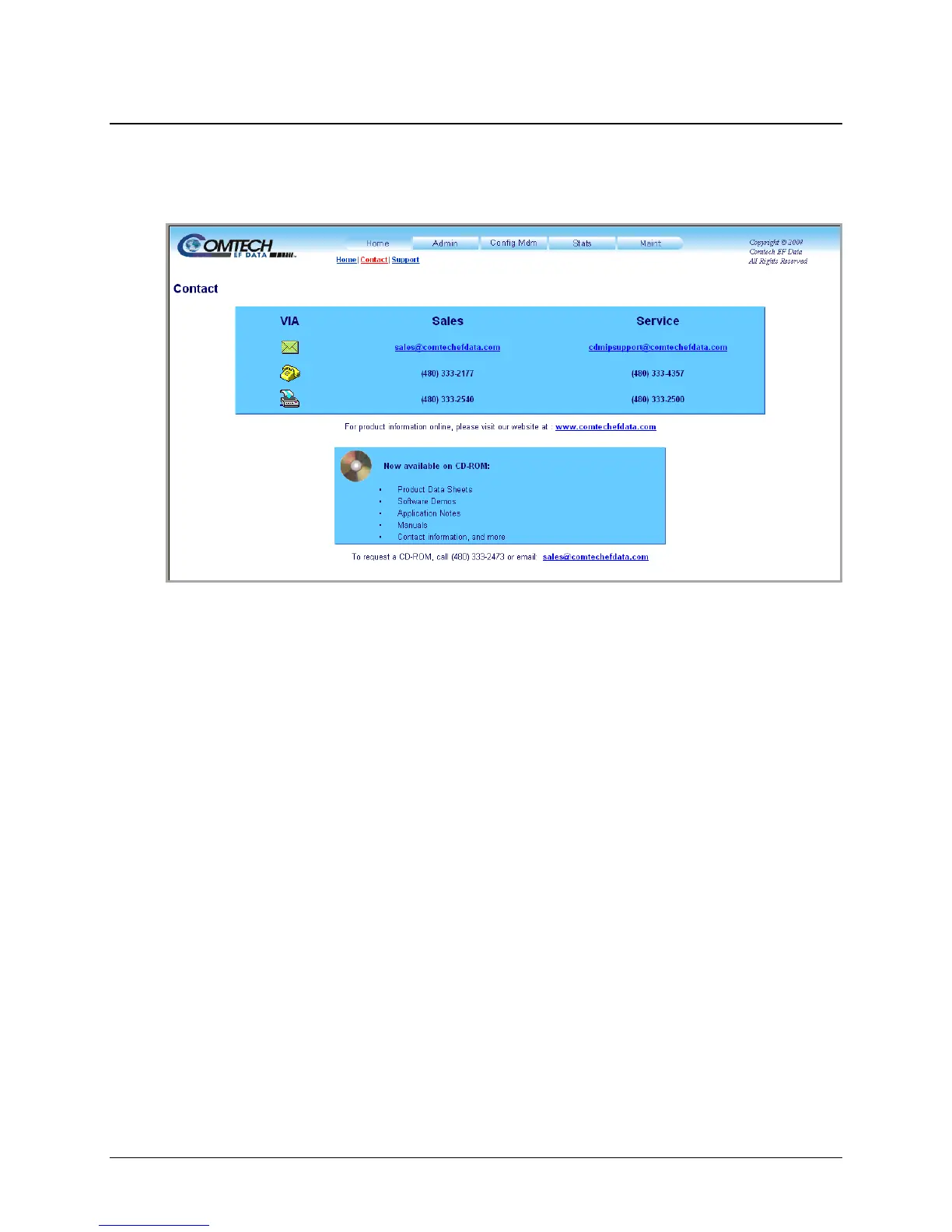

Figure 7-4. Home | Contact page
