CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Appendix K MN/CDM570L.IOM

K–5

KST2000A/B Transceiver operation. Figure K-3 and Figure K-4 illustrate those ODU-specific

CDM-570 menu hierarchies.

K.3.3.1.1 (SELECT:) ODU – CSAT-5060 Transceiver Operation

Figure K-3 identifies the basic CDM-570 front panel menu hierarchy as it pertains specifically to

operation of the CSAT-5060 ODU.

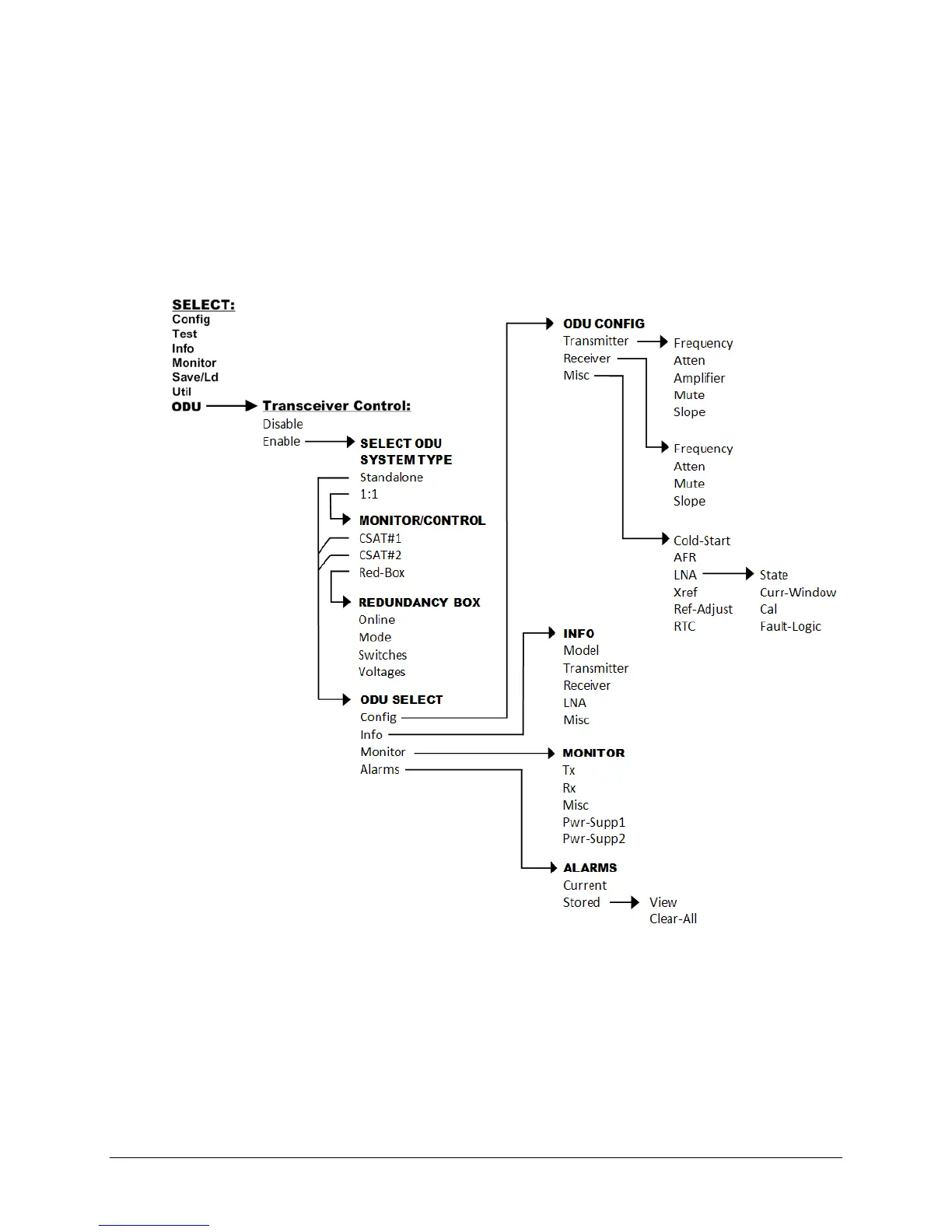

Figure K-3. ODU: CSAT-5060 Transceiver Menu Tree
