14.2.9.7 Block Up Converter (BUC) Configuration

Activate the Block Up Converter (BUC) Configuration page from the Configuration page.

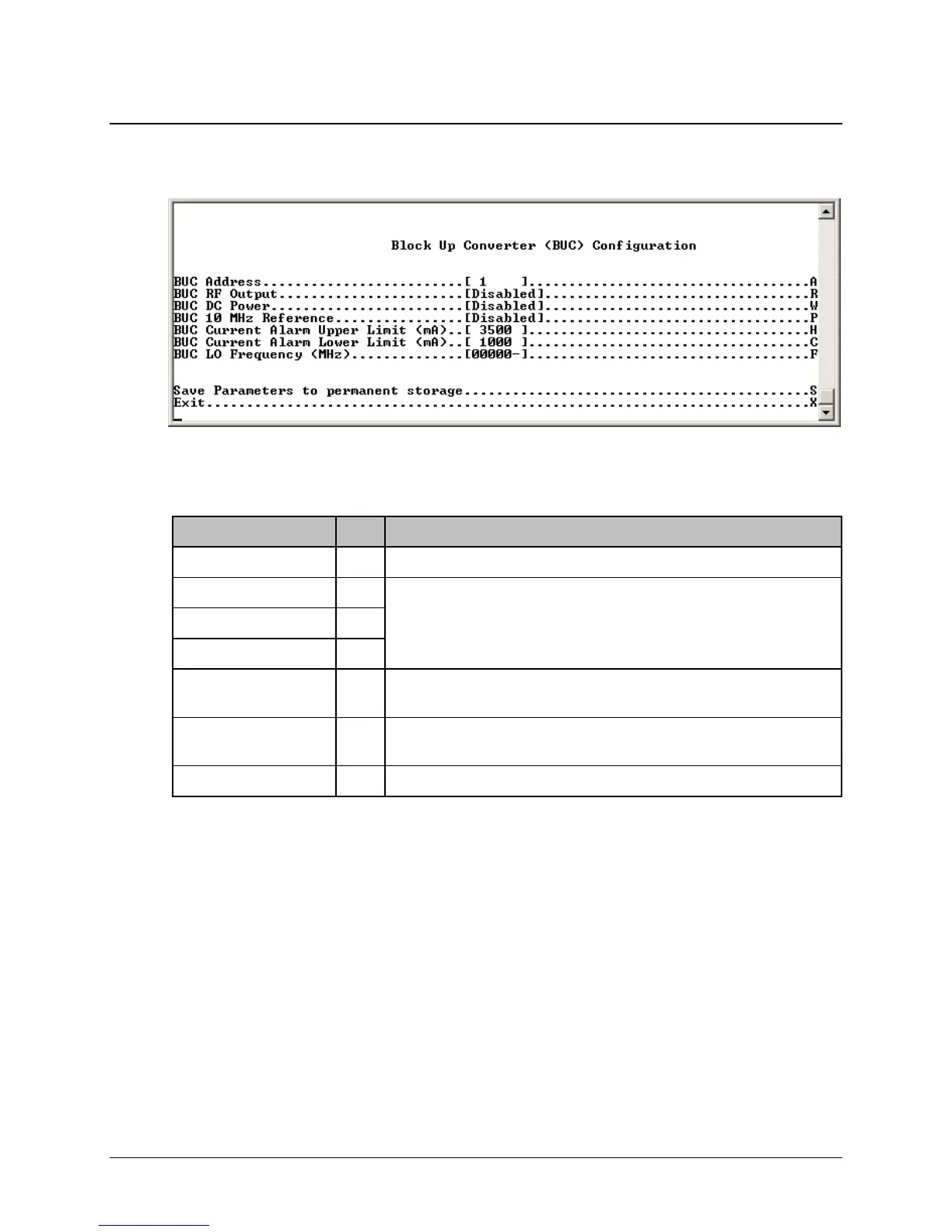

Figure 14-32. Block Up Converter (BUC) Configuration Page

The Block Up Converter (BUC) Configuration page contains the following options/fields:

Selection Entry Description

BUC Address A Select a value from 1 to 15

BUC RF Output R

Select as Enabled or Disabled.

BUC DC Power W

BUC 10 MHz Reference P

BUC Current Alarm Upper

Limit (mA)

H Enter a value from 500 to 4000

BUC Current Alarm Lower

Limit (mA)

C Enter a value from 0 to 3000

BUC LO Frequency (MHz) F Enter a value from 3000 to 65000, 0 to disable
