CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module Interface MN/CDM570L.IOM

13–34

13.6.2.3.2 Modem | Utilities

For detailed information about the configuration parameters available on this

page, see Chapter 5. FRONT PANEL OPERATION.

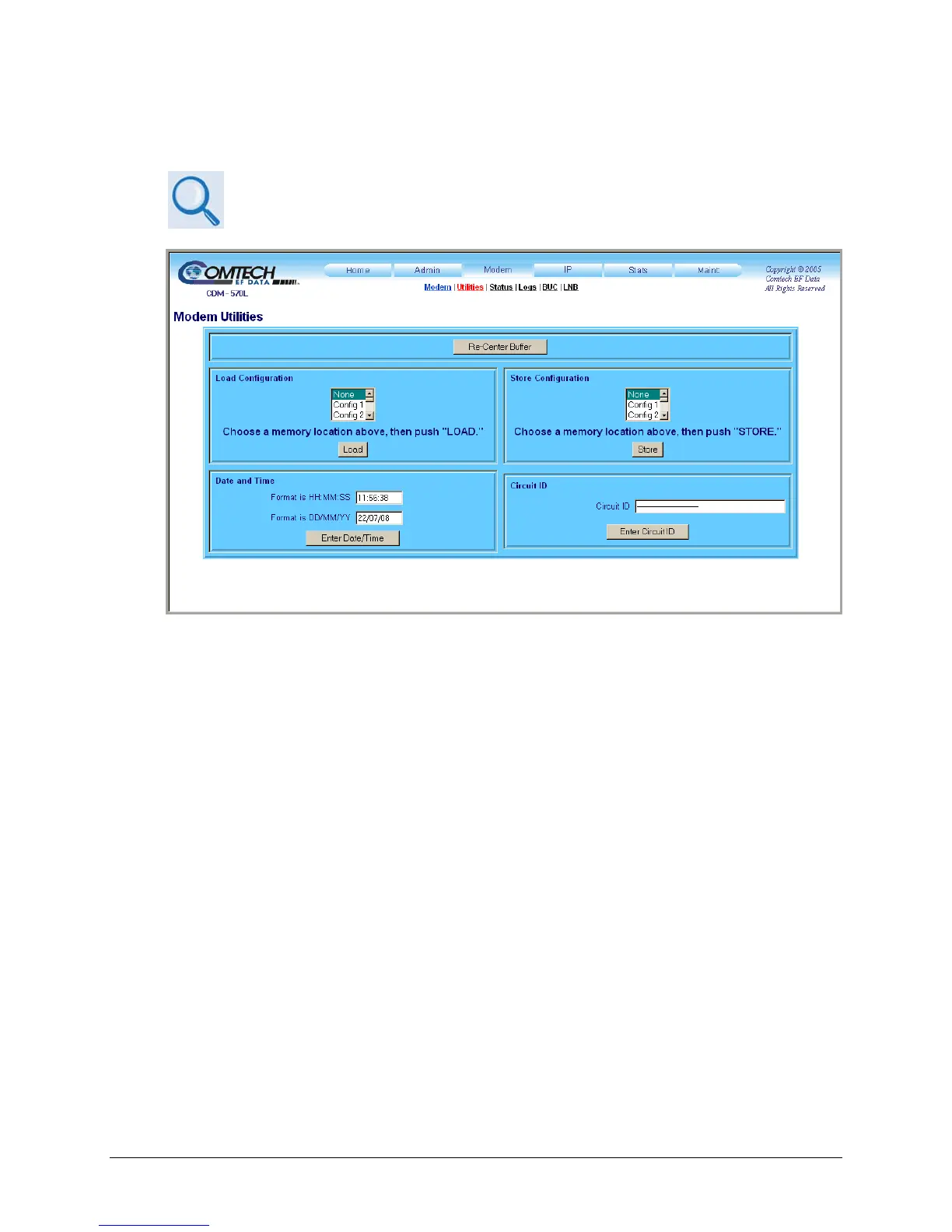

Figure 13-14. Modem | Utilities page

Use this page to set utilities such as Date and Time and Circuit ID, and to Load or Store

Configuration presets.

Click [Re-Center Buffer] to force the recentering of the Plesiochronous/Doppler buffer.
