13.6.2.4.5.2 IP | QoS (Minimum/Maximum Bandwidth Mode)
Use the ‘IP | QoS’ page, as it appears when Minimum/Maximum Bandwidth Mode is active
(Figure 13-22), to establi
sh up to 32 different types of flows. See Sect. 13.4.5.2 for full
information on this page’s functionality.

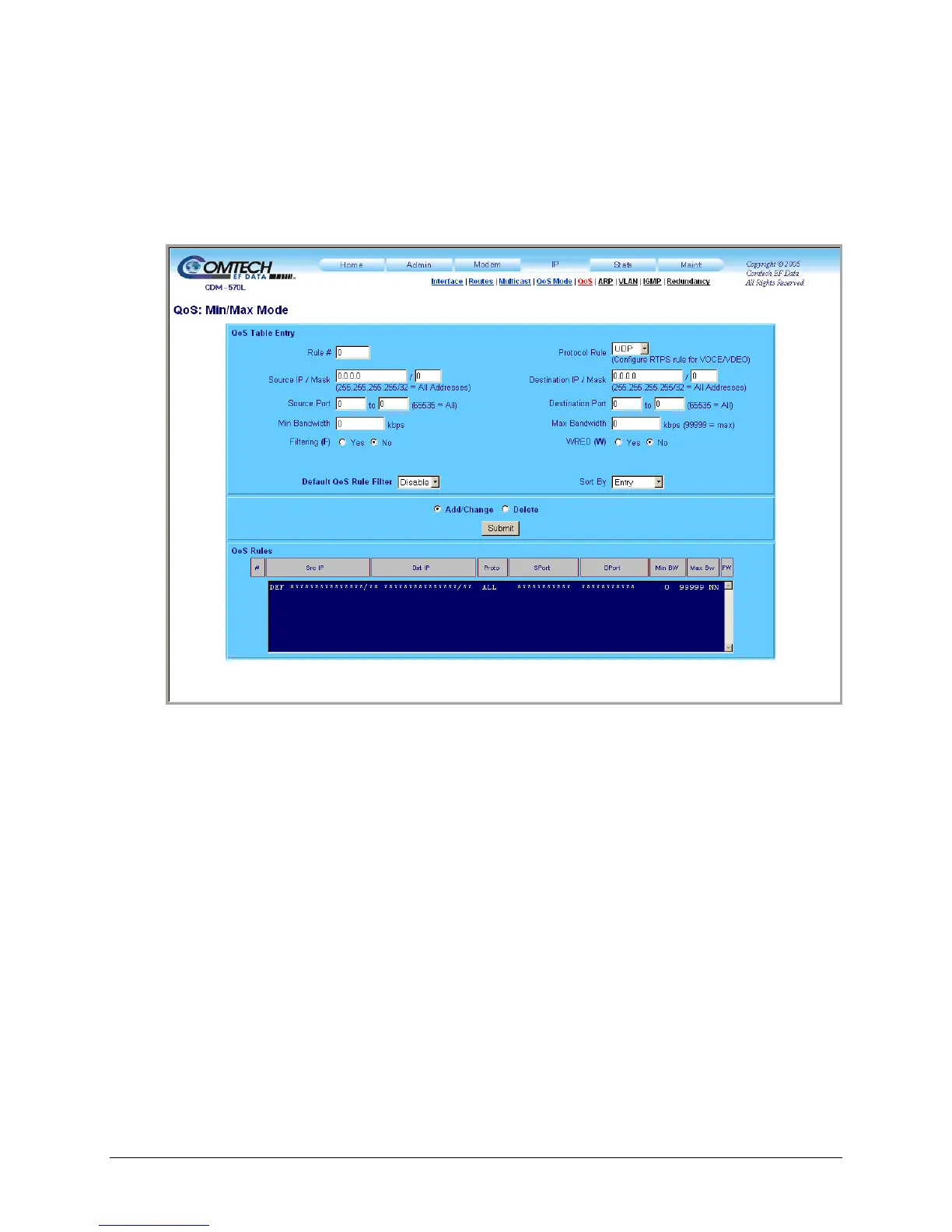

Figure 13-22. IP | QoS Mode page (Min/Max Mode)
QoS Table Entry
Use the text boxes to enter the following information:
• Rule #
• Source IP / Mask
• Destination IP / Mask
• Source Port (range)
• Destination Port (range)
• Max Bandwidth (in kbps)
