CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module - CLI and Telnet Operation MN/CDM570L.IOM

14–44

14.2.9.4 Data Interface Configuration

Activate the Data Interface Configuration page from the Configuration page.

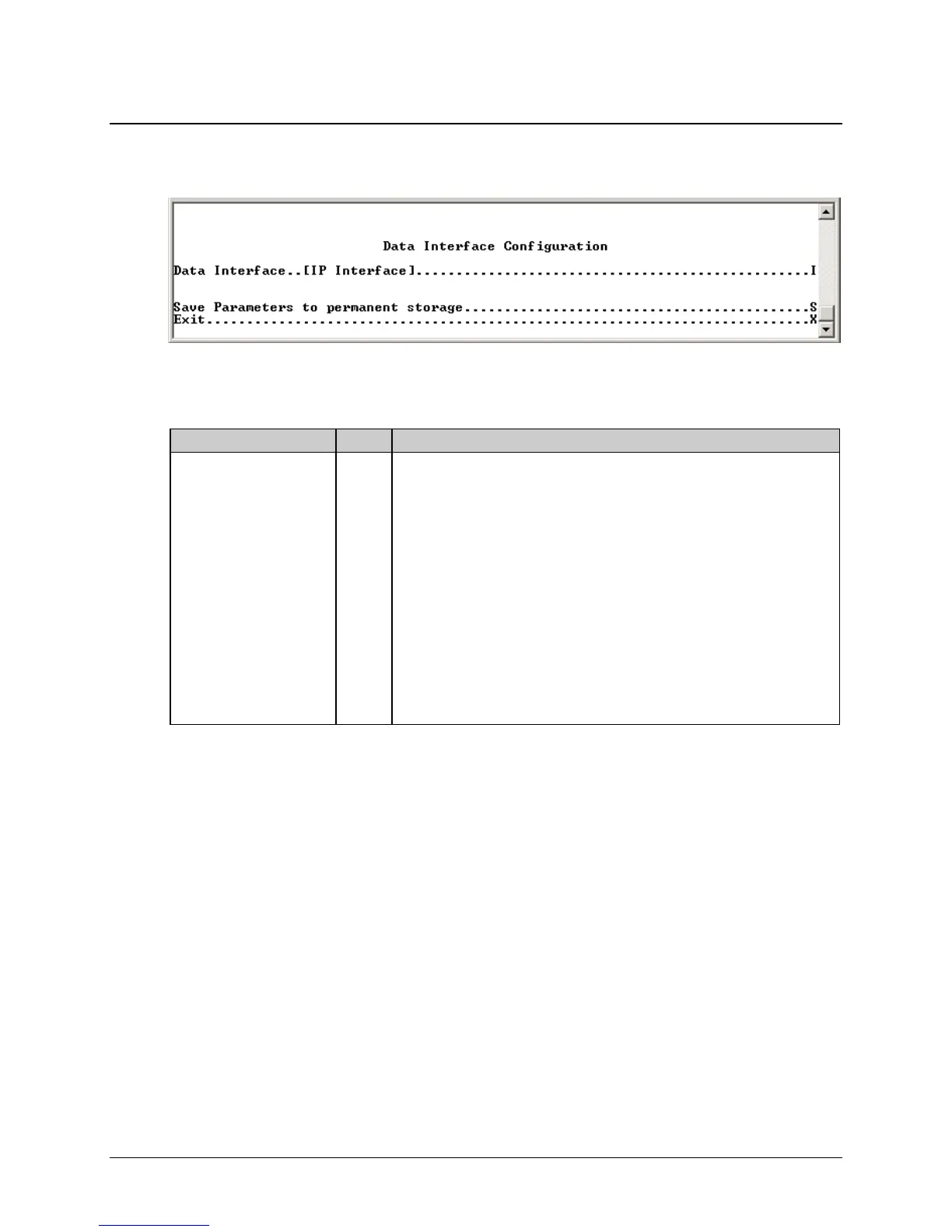

Figure 14-29. Data Interface Configuration Page

The Data Interface Configuration page contains the following options/fields:

Selection Entry Description

Data Interface I 1 – EAI-422/EAI-530 DCE

2 – V.35 DCE

3 – EAI-232(sync)

4 – G.703 T1 AMI

5 – G.703 T1 B8ZS

6 – G.703 E1 Unbal AMI

7 – G.703 E1 Unbal HDB3

8 – G.703 E1 Bal AMI

9 – G.703 E1 Bal HDB3

10 – IP Interface

NOTE: The data interface must be set to IP Interface for IP traffic to pass

over the satellite.
