4.25.1 【F1】Speed Parameters
In the SETUP menu, press the【F1】key to enter the SPEED parameter page:

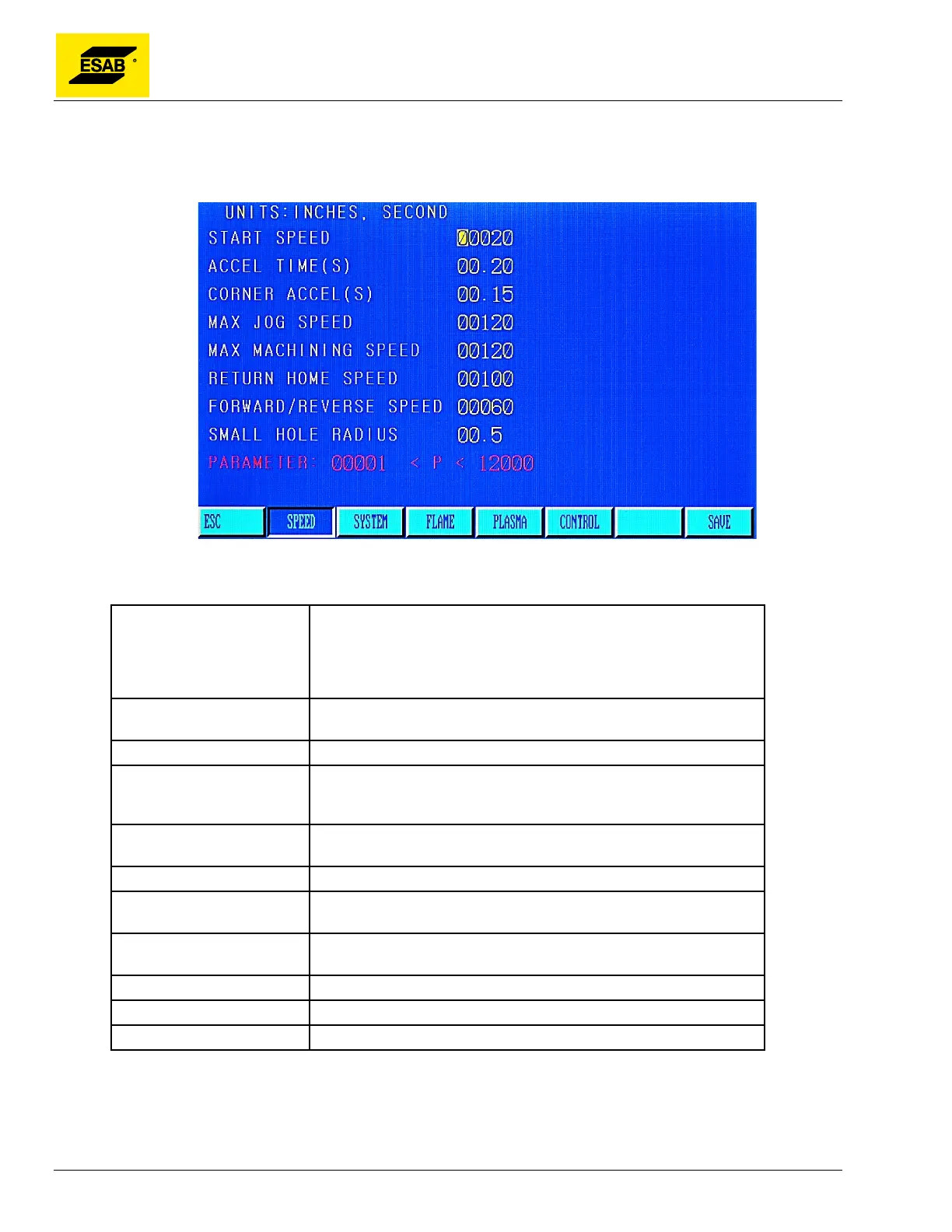

Figure 85: SPEED Parameters
SPEED parameters
START SPEED The starting and stop speed of motors in X and Y axis in mm/min or
inch/min. This is the speed at which the axes start moving before
accelerating up to full speed during the Acceleration Time. The
lower these speeds, the smoother the start and stop will be. (Note:
Metric system/ British system)
ACCEL TIME The time required for the system to accelerate from starting speed
to maximum speed limit, in seconds.
CORNER ACCEL Acceleration time in and out of corners.
MAX JOG SPEED The top speed of the machine in the Manual Jog Mode, and while
executing a rapid positioning move during a program (G00
command). mm/min. or inch/min.
MAX MACHINING SPEED Maximum speed while a cutting process is active, in mm/min. or
inch/min.
RETURN HOME SPEED Speed for returning to the home position, in mm/min. or inch/min.
FORWARD/REVERSE
SPEED
Speed while moving forward or backwards on path after pausing in
automatic mode, in mm/min. or inch/min.
SMALL HOLE RADIUS Holes with a radius smaller than this will be cut at Small Hole
Speed.
SMALL HOLE SPEED Speed for cutting holes with radius smaller than Small Hole Radius.
SLOWDOWN ANGLE Angle below which CNC will decelerate for cornering.
CORNER RADIUS Radius to execute at corners in order to blend motion.
To Next Page
