3.3.4 Install Gas Supply Hoses
Attach the oxygen and fuel gas supply hoses to the inlet fittings on the Cross Beam, as shown.

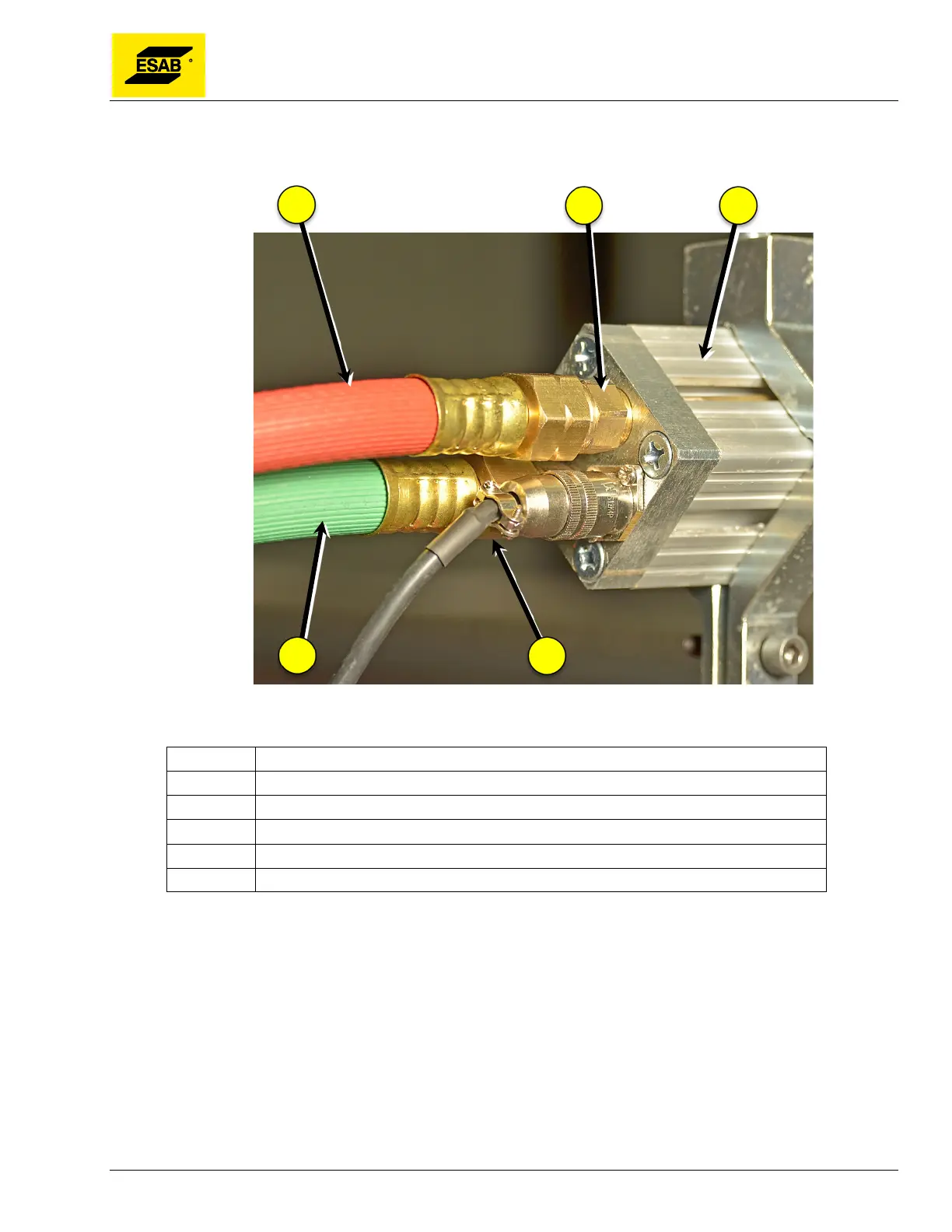

Figure 27: Connecting Gas Supply Hoses
Number Description
1 Fuel Gas Supply Hose, Part Number 0560949423
2 Fuel Gas Inlet Fitting
3 Cross Beam
4 Oxygen Supply Hose, Part Number 0560949439
5 Oxygen Inlet Fitting
5
1
4
3
2
