ESAB CROSSBOW - Install Initial Height Sensing Cable

ESAB Cutting Systems
CROSSBOW Page 56
3.4.4 Install Initial Height Sensing Cable
The Initial Height Sensing (IHS) cable is made up of two wires (Red and Black) joined into a single 2-
pin connector at one end.

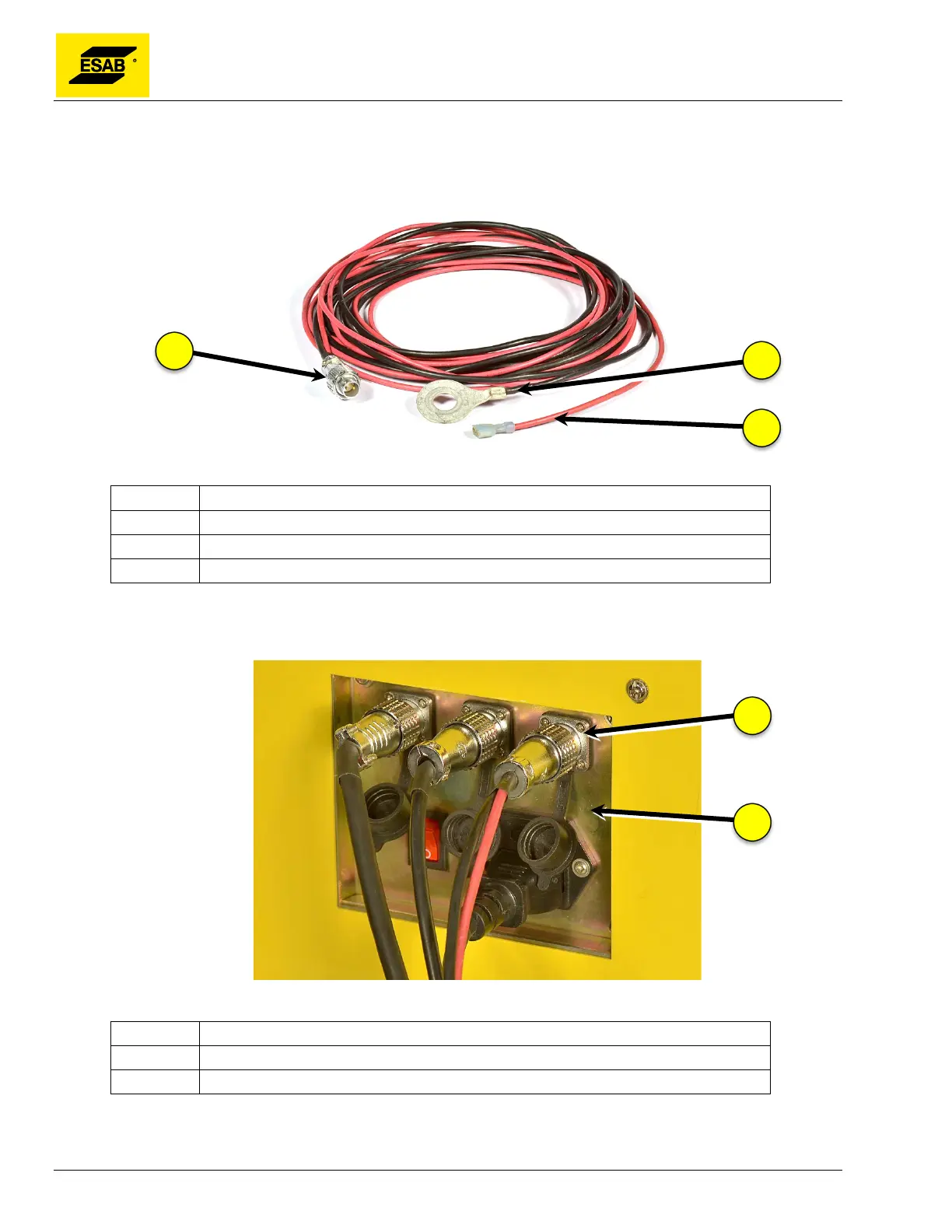

Figure 35: IHS Cable
Number Description
1 2-Pin Crossbow Machine Connector
2 Ground Wire (Black)
3 Torch Shield Wire (Red)
Insert the 2-pin plug into the mating socked on the Connector Panel on rear of Central Unit.
Figure 36: Connecting IHS Cable
Number Description
1 2-Pin Plasma IHS Cable Socket
2 Connector Panel (rear of Central Unit)
2
1
3
2
1
