CROSSBOW Page 47
3.3.2 Install Torch in Torch Holder with Adaptor
Use the supplied Torch Adaptor to install the Oxy-Fuel Torch into the Torch Holder, as shown. Arrange
the torch so that the needle valves are easily accessible. Tighten the torch holder as necessary to hold
the torch firmly in place. Do not over-tighten.

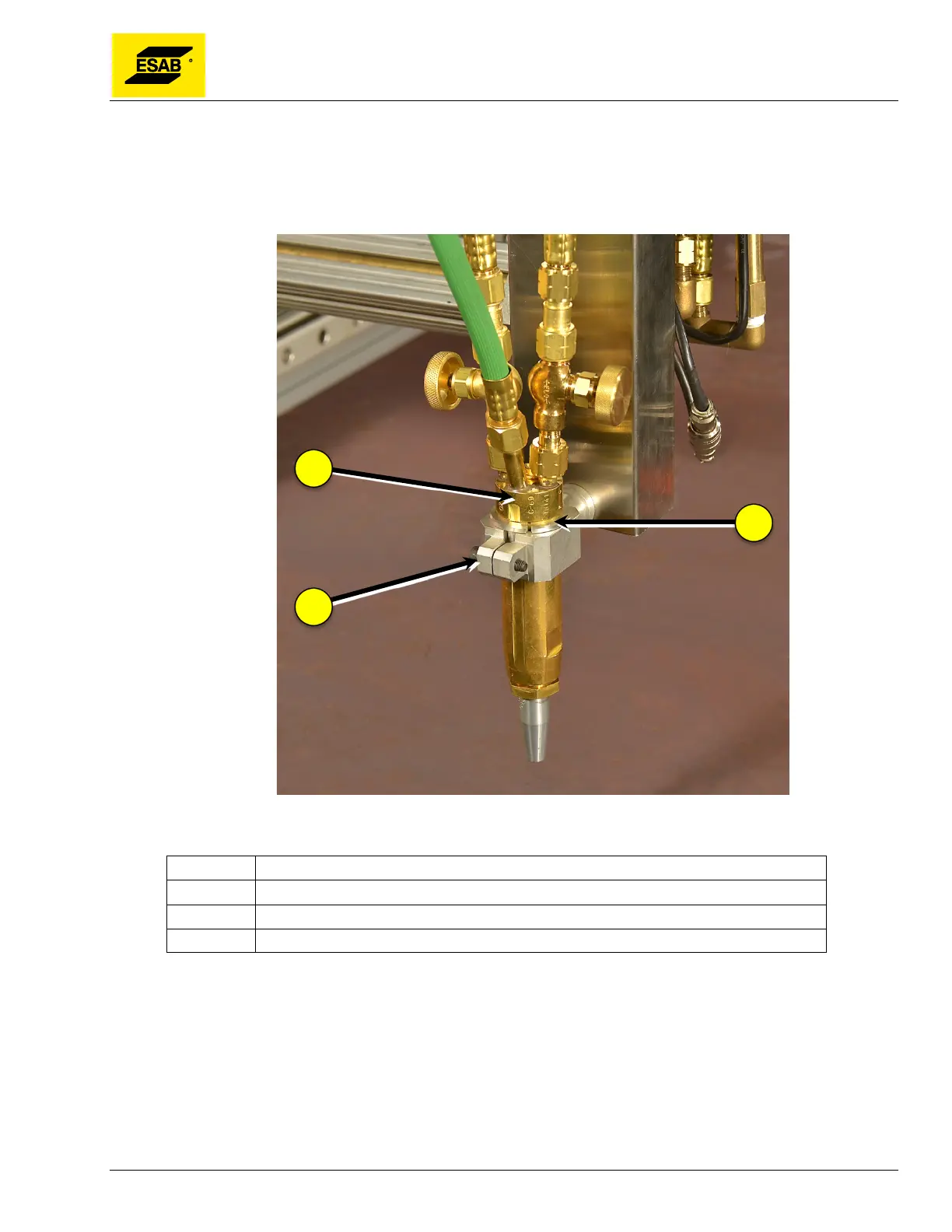

Figure 25: Oxy-Fuel Torch Installed in Torch Holder
Number Description
1 Oxy-Fuel Torch
2 Torch Adaptor (1.25” ID x 1.375” OD)
3 Torch Holder
2
1
3
