ESAB Cutting Systems
CROSSBOW Page 166
5.6.19 Replacing V-Wheels
If one of the V-Wheels supporting the Cross Beam requires replacement, use the following procedure:
1) Follow above procedure for Removing the Cover.
2) Loosening tension screw locking nuts and then loosening tension screws on each upper V-
Wheel Shaft.
3) Remove the four screws holding Front Cross Drive Mounting Panel to base plate.
4) Remove Shaft Mounting Nuts, lock washers, and flat washers from Front Cross Drive
Mounting Panel end of all four V-Wheel shafts.
5) Pull the front internal wall forward, off of V-Wheel Shafts.

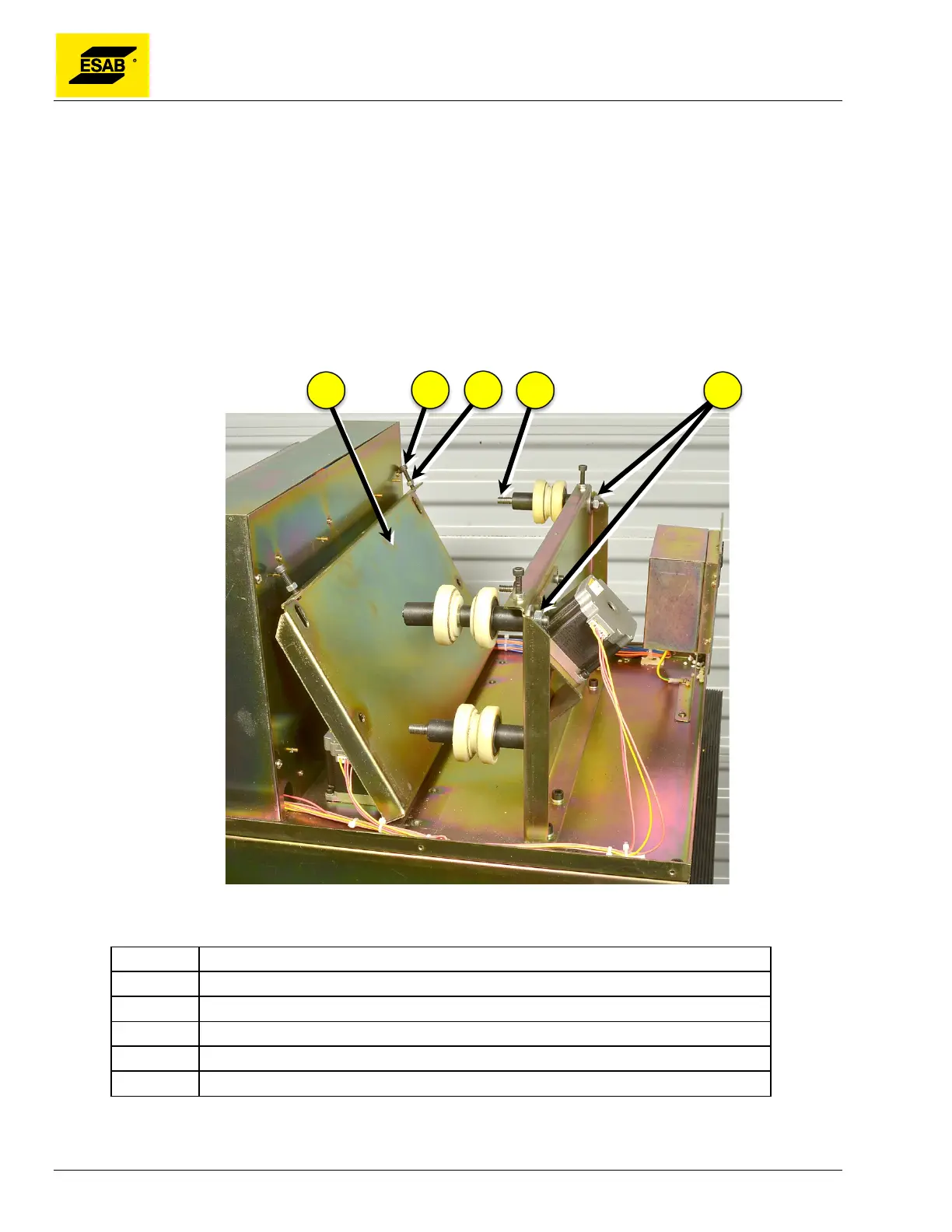

Figure 132: Replacing V-Wheels
Number Description
1 Front Cross Drive Mounting Panel
2 V-Wheel Tension Screw
3 V-Wheel Tension Screw Locking Nut
4 V-Wheel Shaft
5 V-Wheel Shaft Mounting Nuts
