ESAB CROSSBOW - Oxy-Fuel Torch Kit

ESAB Cutting Systems
CROSSBOW Page 184
6.3.11 Oxy-Fuel Torch Kit

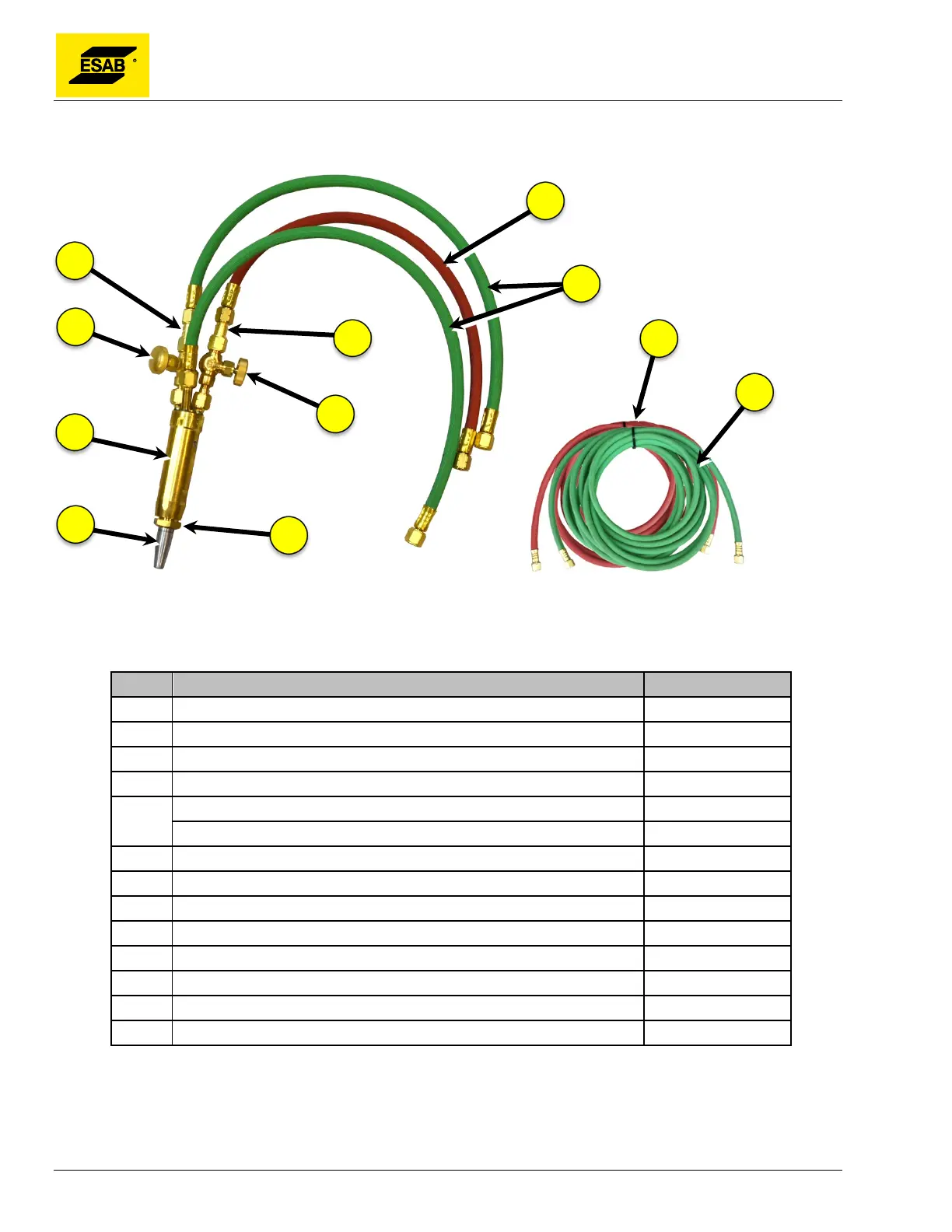

Figure 148: Oxy-Fuel Torch Kit
Item Description Part Number
REF Complete Oxy-Fuel Torch Kit for Fuel Gases other than Acetylene 0560954396
REF Complete Oxy-Fuel Torch Kit for Acetylene 0560954397
1 Check Valve, Oxygen 639110
2 Needle Valve, Oxygen 3395
3
Torch, C-69 (Fuel Gases other than Acetylene) 28X47
Torch, C-70 (Acetylene) 28x53
4 Nozzle See page 185
5 Check Valve, Fuel Gas 0560985522
6 Needle Valve, Fuel Gas 3396
7 Nozzle Nut 33A56
8 Torch Hose, Fuel Gas 0560951216
9 Torch Hose, Oxygen 0560951218
10 Fuel Gas Supply Hose, 8m 0560949439
11 Oxygen Supply Hose, 8m 0560949423
1
4
3
2
10
5
6
7
11
8
9
