3.4 Plasma Torch Installation
3.4.1 Install Second Cable Holder
The Cable Holders hold the plasma torch lead and prevent it from pulling sideways on the torch while
cutting. The Cable Holders are only required if a plasma torch is installed. If an oxy-fuel torch is also
used, do not install the second Cable Holder until after the oxy-fuel torch hoses are installed.
Screw the Cable Holder post into the pre-installed Post Clamp on the right-hand end of the Cross
Beam. Hand tighten.

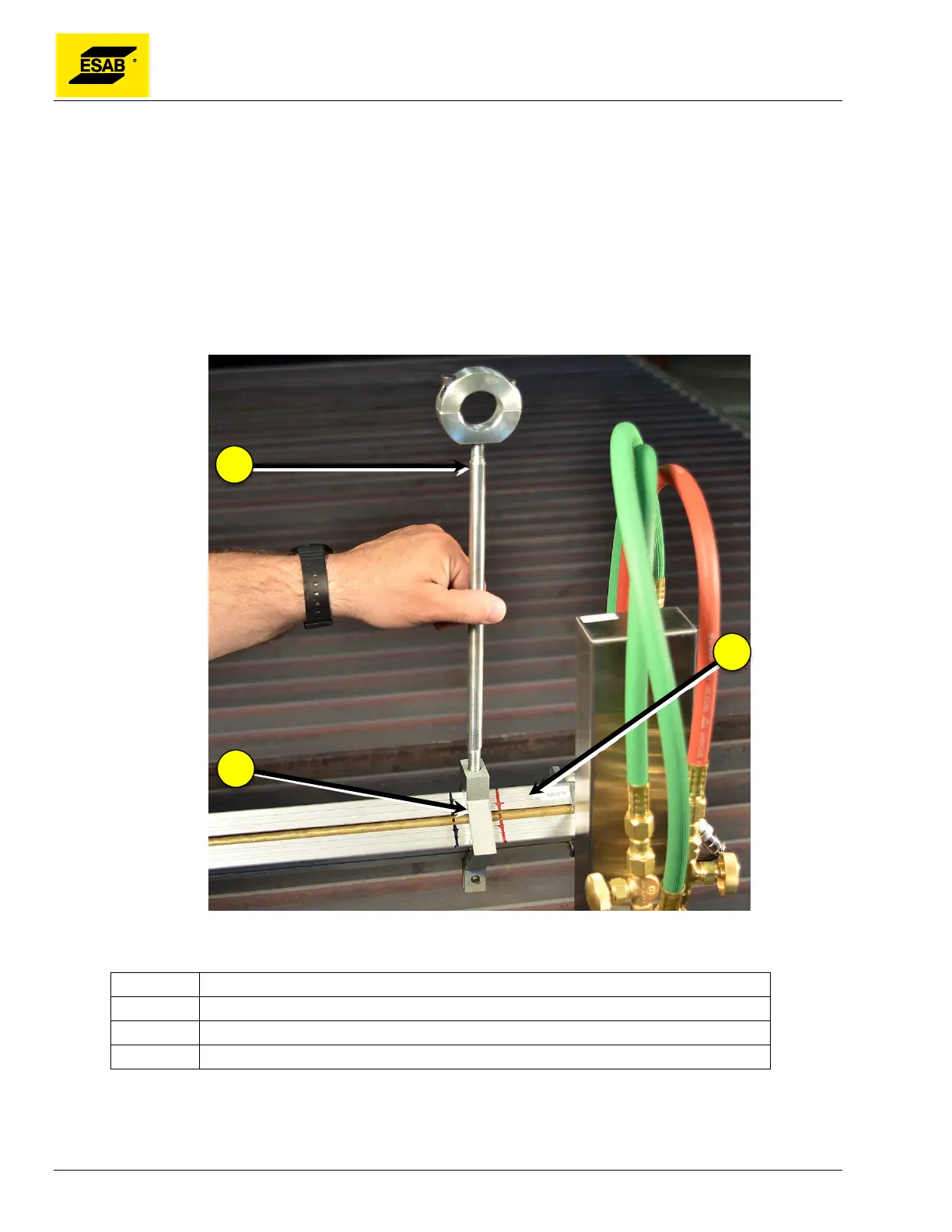

Figure 29: Installing 2
nd
Cable Holder
Number Description
1 Cable Holder
2 Cross Beam
3 Post Clamp
2
1
3
