ESAB Cutting Systems
CROSSBOW Page 43
3.2.5 Connect Cables
Step 1 Connect Lift Motor & Solenoid Valve Cable
The Lift Motor & Solenoid Valve Cable is a 4-wire cable, with 4-pin connectors at each end. It connects
between the back of the Central Unit and the end of the Cross Beam.

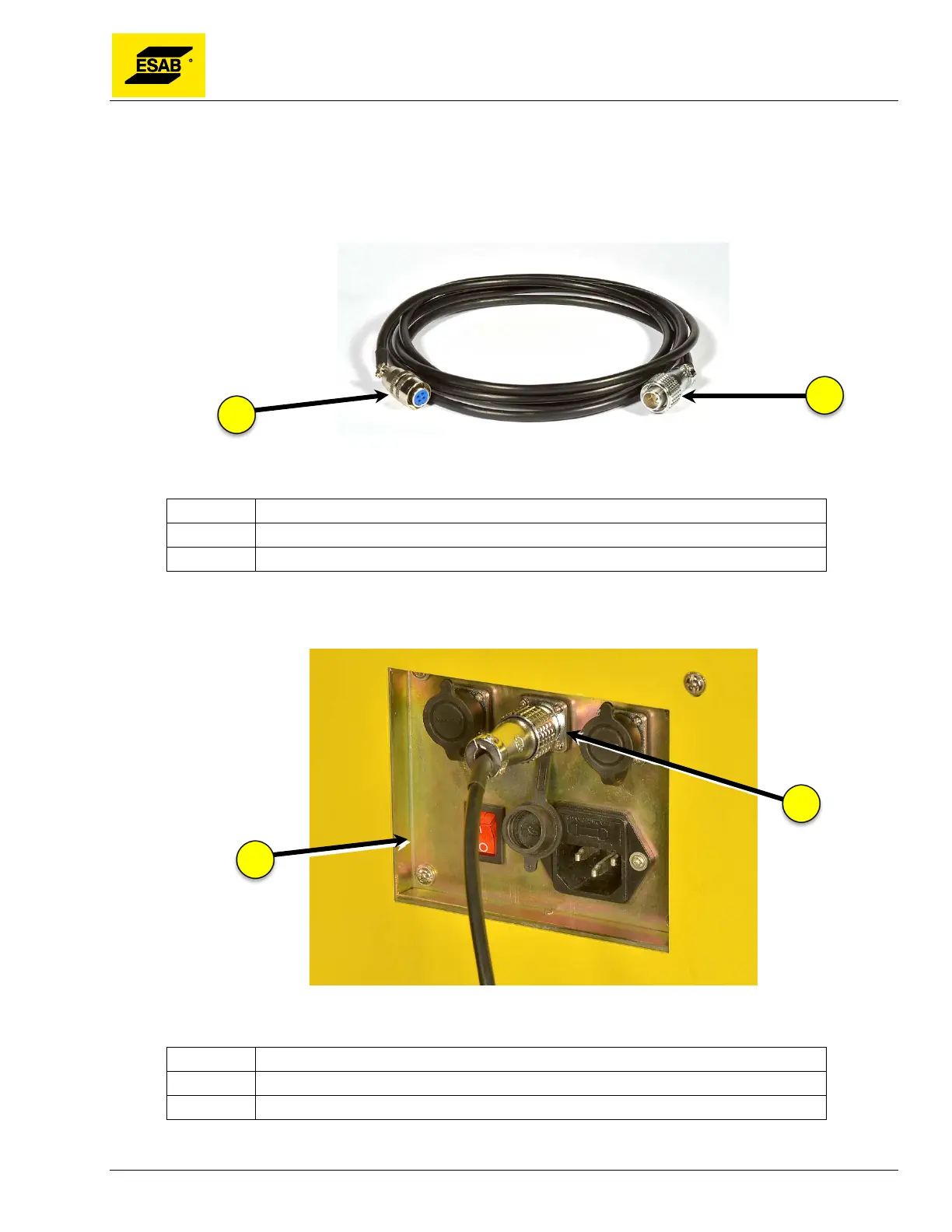

Figure 19: Lift Motor & Solenoid Cable
Number Description
1 4-Pin Cross Beam Connector (pull sleeve)
2 4-Pin Central Unit Connector (screw on)
Connect one end to the 4-pin socket on the Connector Panel on rear of Central Unit.
Figure 20: Connecting Lift Motor & Solenoid Cable
Number Description
1 Connector Panel (rear of Central Unit)
2 4-Pin Lift Motor & Solenoid Cable Socket
