5.6.20 Replacing the Solenoid Valve
If the Cut-Oxygen Solenoid Valve requires replacement, use the following procedure:
1) Remove all incoming power from machine.
2) Shut-off and disconnect oxygen supply.
3) Remove cut-oxygen torch hose from hose fitting on top of solenoid valve.
4) Remove coil from valve body by unscrewing cap.

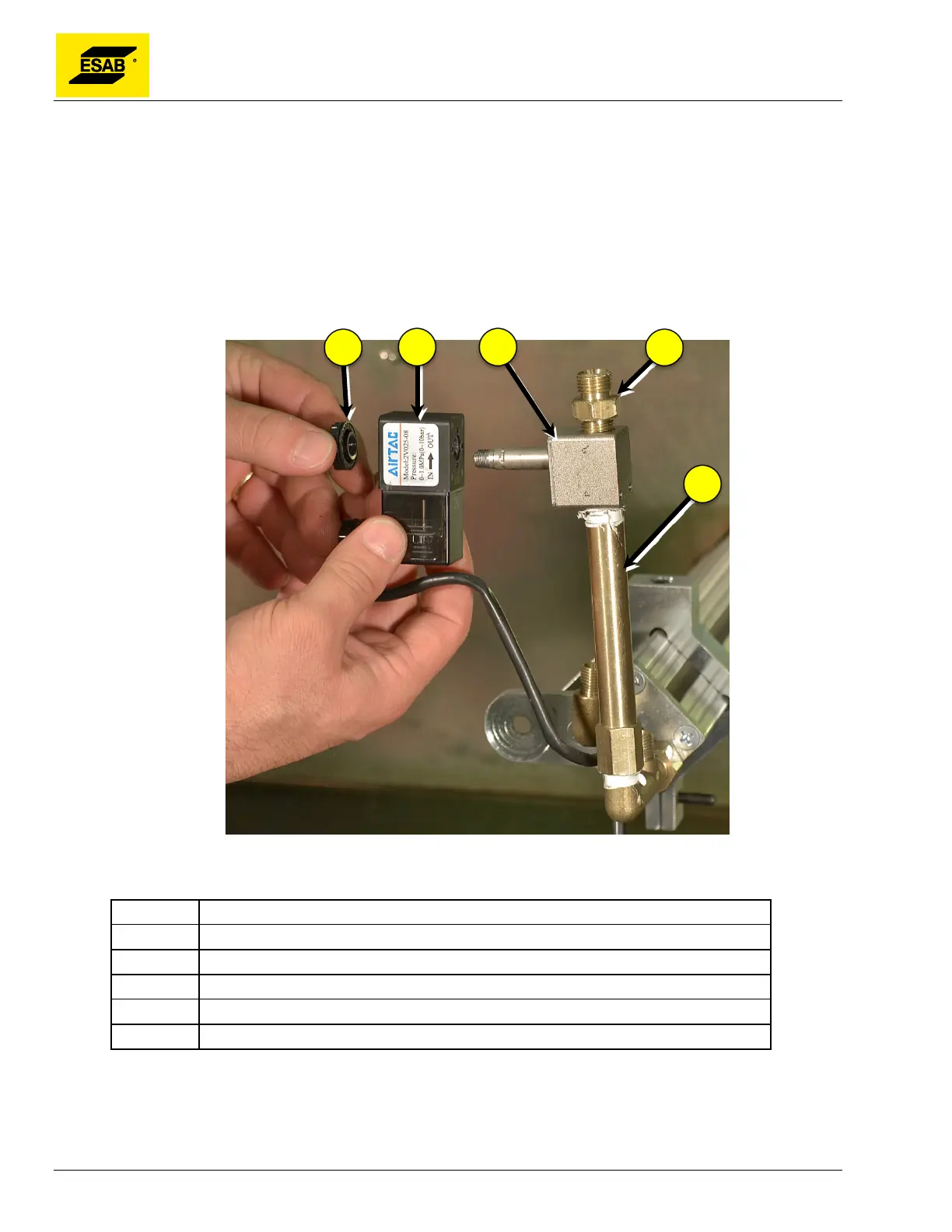

Figure 134: Removing Solenoid Coil
Number Description
1 Coil Mounting Cap
2 Solenoid Coil
3 Valve Body
4 Hose fitting
5 Valve mounting pipe
1
4
3
2
5
