ESAB CROSSBOW - Cables and Connectors

ESAB Cutting Systems
CROSSBOW Page 180
6.3.7 Cables and Connectors

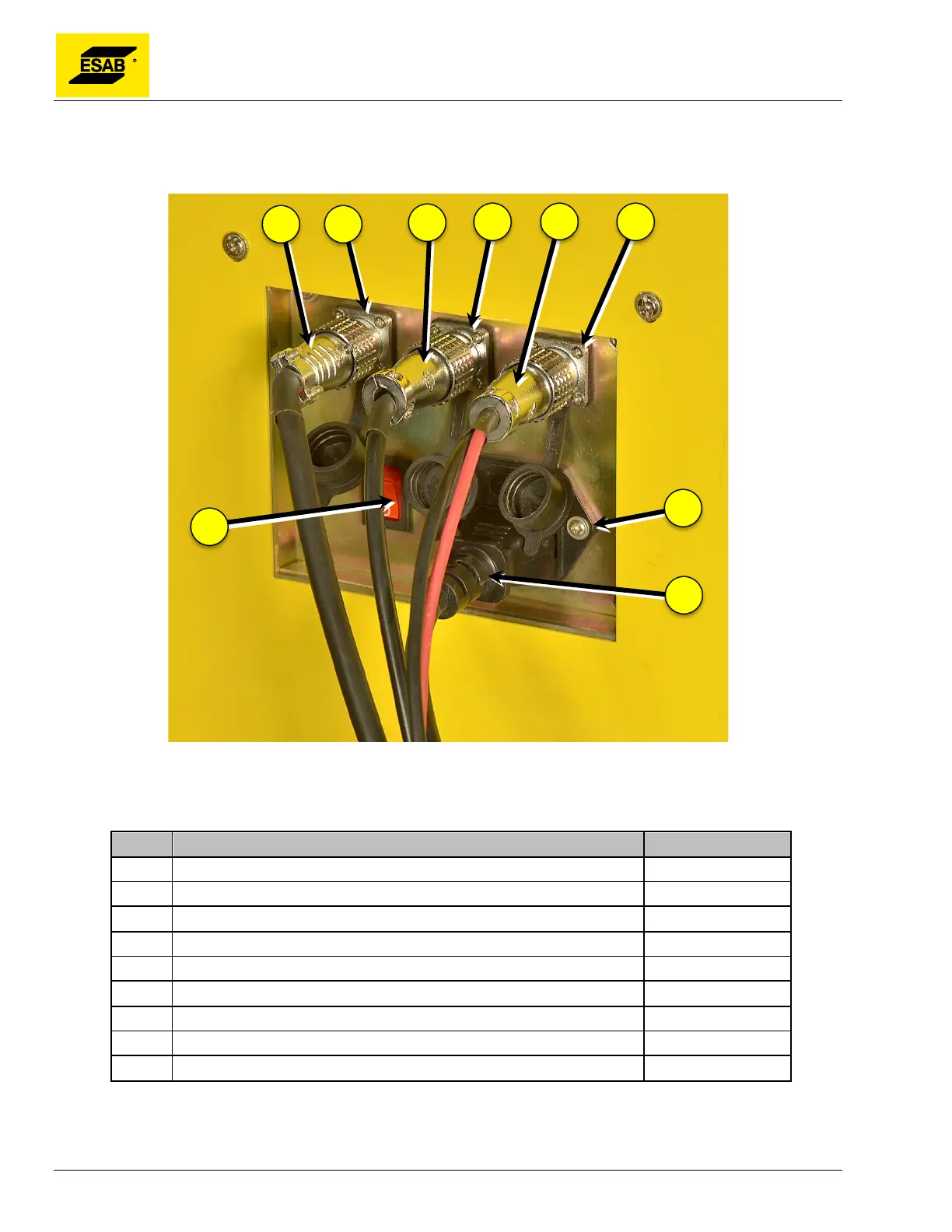

Figure 144: Connector Panel Cable Connections
Item Description Part Number
1 Plasma Interface Cable (6-pin) 0 004 453 050
2 6-Pin Plug and Socket (Plasma Interface) 0 004 453 048
3 Lift Motor and Solenoid Valve Cable (4-pin) 0 004 453 049
4 4-Pin Plug and Socket (Lift Motor and Solenoid Valve) 0 004 453 047
5 Initial Height Sensing Cable (2-pin) 0 004 453 039
6 2-Pin Plug (Plasma IHS) 0 004 453 046
7 Power Socket with Fuse Holder 0 004 453 036
8 110 VAC Power Cable, 50’, IEC to Edison 0 560 954 800
9 Main Power Switch 0 004 453 035
1
5
7
8
9
6
4
3
2
