ESAB CROSSBOW - Torch Lifter Parts

ESAB Cutting Systems
CROSSBOW Page 182
6.3.9 Torch Lifter Parts

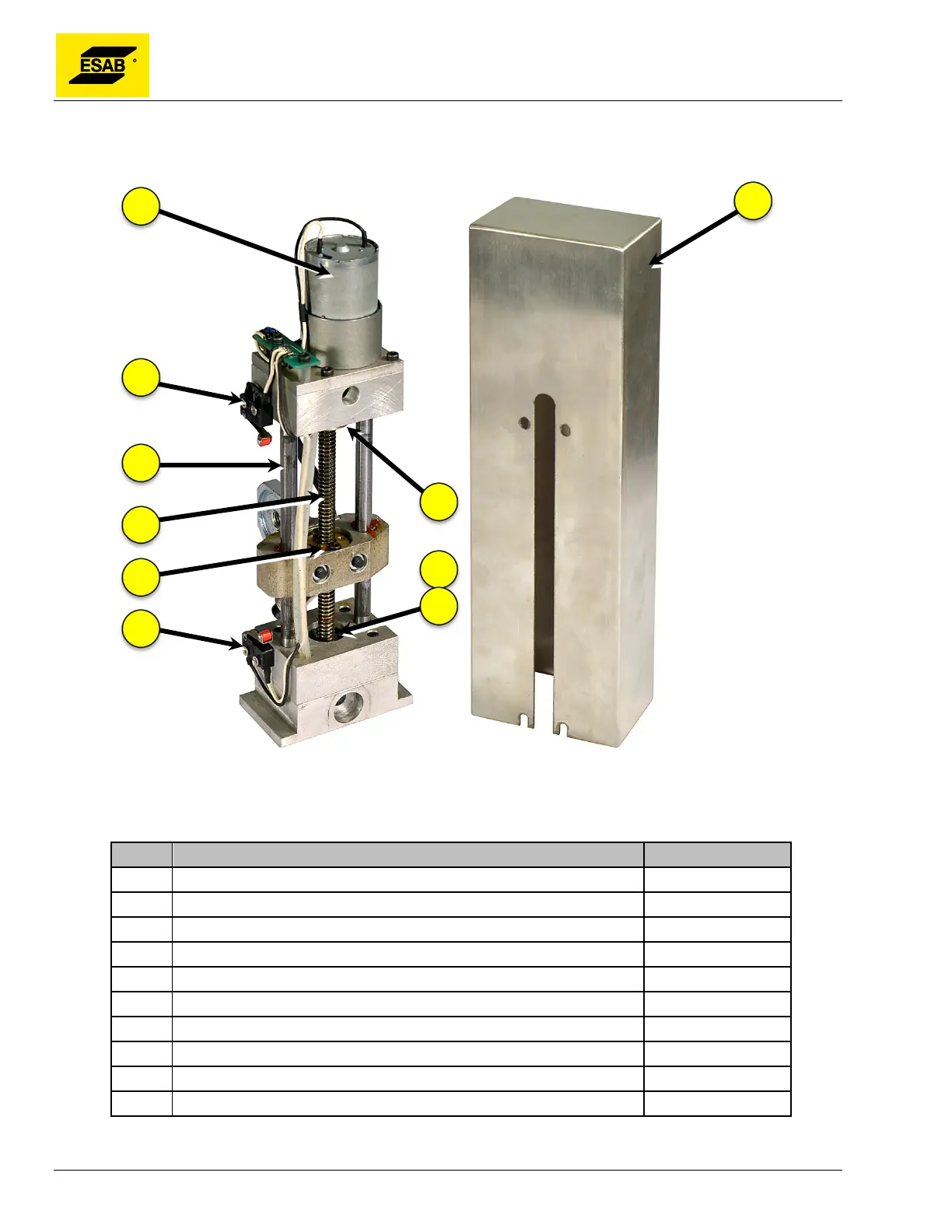

Figure 146: Torch Lifter Internal Parts
Item Description Part Number
REF Complete Torch Lifter 0 004 453 032
1 Lift Motor 0 004 453 068
2 Micro Switch 0 004 453 044
3 Guide Shaft 0 004 453 065
4 Screw Rod 0 004 453 067
5 Screw Nut 0 004 453 061
6 Lifter Cover 0 004 453 054
7 Flexible Coupling 0 004 453 058
8 Ball Bearing 0 004 453 051
9 Spacer Sleeve 0 004 453 052
1
3
2
4
6
7
5
8
2
9
