6.3.4 Internal Electrical Parts

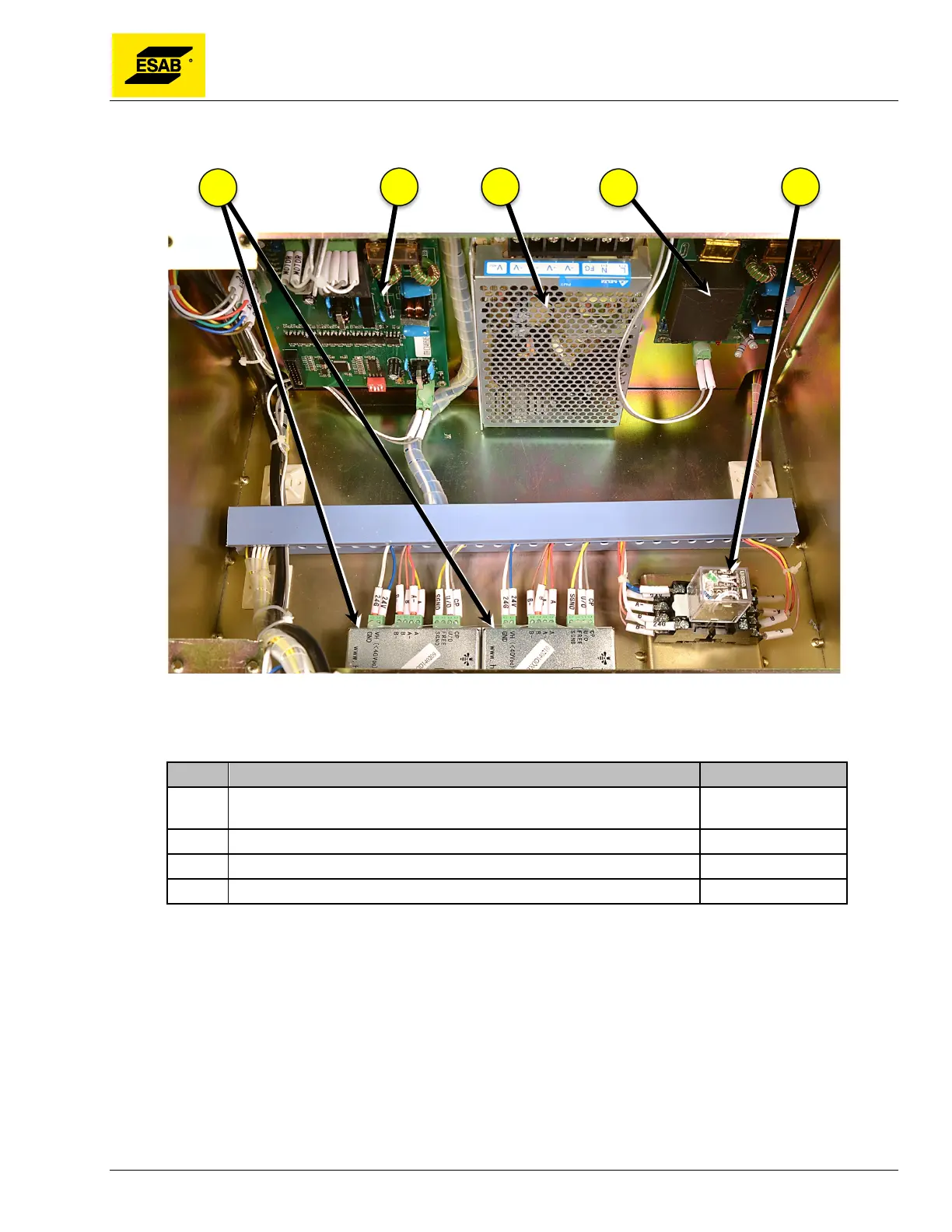

Figure 141: Internal Electrical Parts
Item Description Part Number
1
Arc Voltage Control Board & Initial Height Sensing Board (Supplied
together)
0 004 453 043
2 Main Power Supply (24V) 0 004 453 019
3 Stepper Motor Drivers 0 004 453 018
4 Relay 0 004 453 017
1
4
2
1
3
