2.3 Machine Dimensions

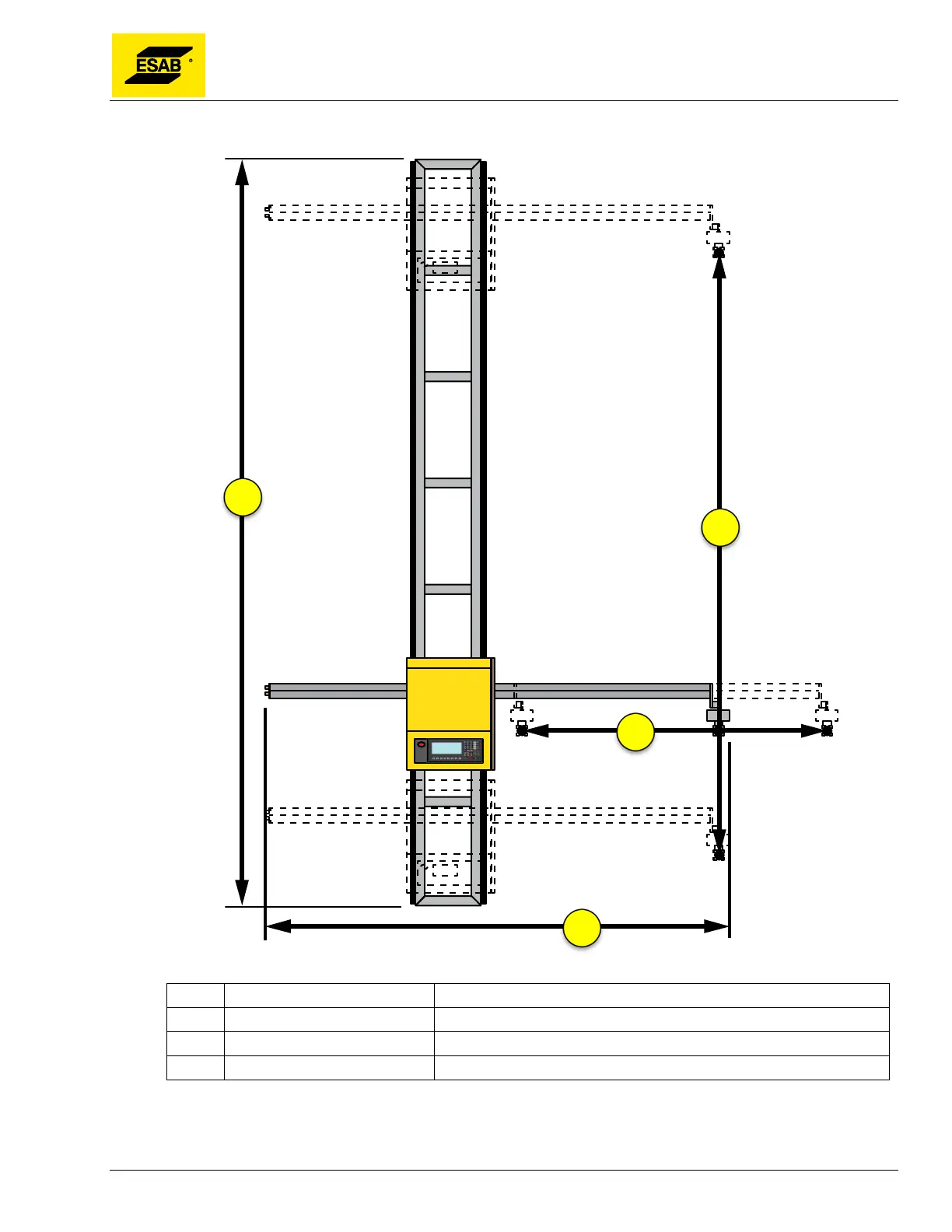

Figure 2: Crossbow Dimensions
A Overall Track Length 2200 or 4000 mm (86 or 157 in.)
B Cross Beam Width 2362 mm (93 in.)
C Effective cutting length 1220 or 3100 mm (4 ft. or 10 ft.)
D Effective cutting width 1525 mm (5 ft.)
D
B
C
A
