6.3.3 Motion System Parts

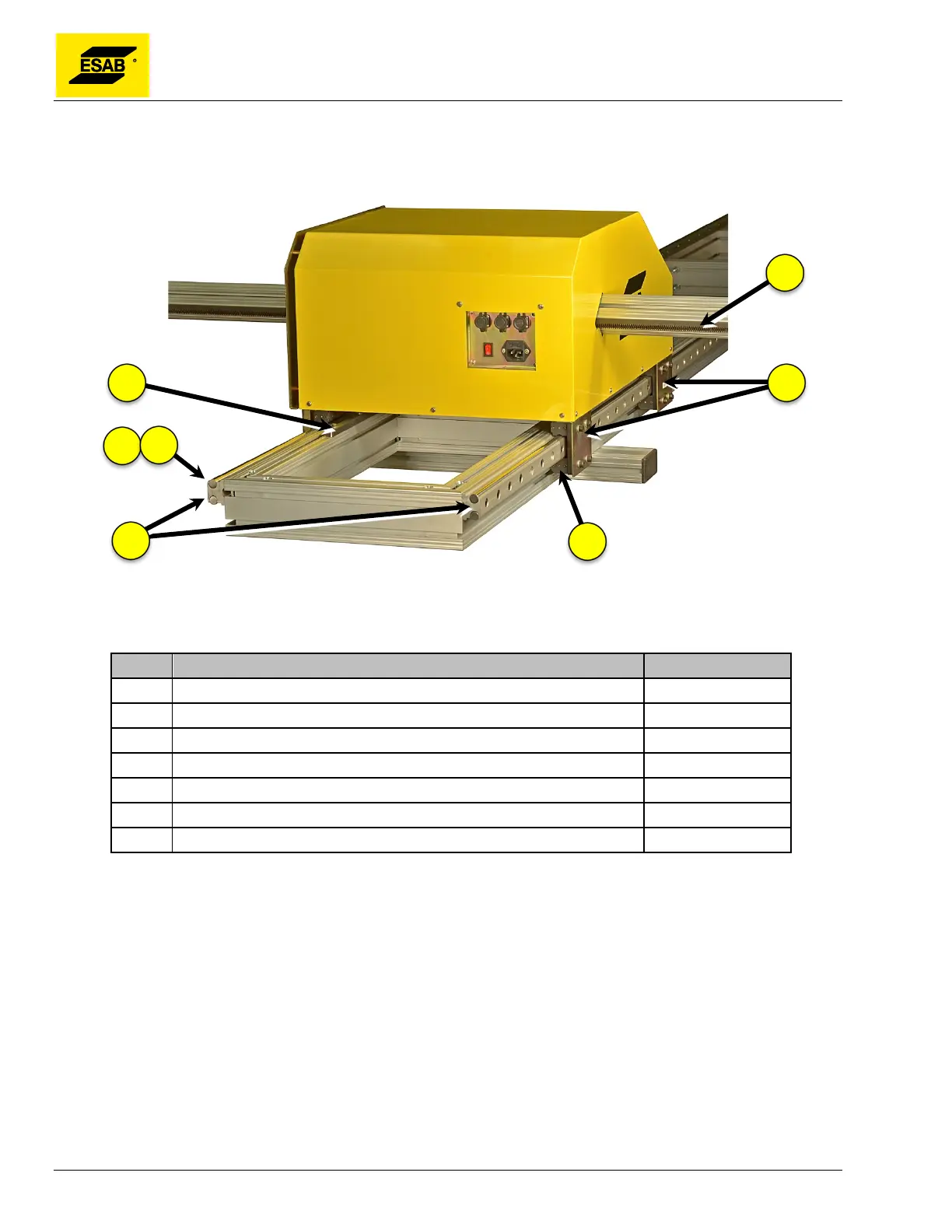

Figure 140: Motion System Parts
Item Description Part Number
1 Drive Rack, Y-Axis (rail axis) 0 004 453 063
2 Rubber Bumper/Rail Stop 0 003 762 002
3 M6x40 mm Socket Head Cap Screw-SS 0 006 101 036
4 Linear Rail, 4000 mm 0 004 453 066
5 Drive Rack, X-Axis (cross beam) 0 004 453 062
6 Short Side Brackets 0 004 453 011
7 Linear Bearing Block 0 004 453 012
