ESAB CROSSBOW - Changing Initial Height Setting

ESAB Cutting Systems
CROSSBOW Page 152
1 2 3 4
0 0 0 0 = 1
1 0 0 0 = 2
0 1 0 0 = 3
1 1 0 0 = 4
0 0 1 0 = 5
1 0 1 0 = 6
0 1 1 0 = 7
1 1 1 0 = 8
0 0 0 1 = 9
1 0 0 1 = 10
0 1 0 1 = 11
1 1 0 1 = 12
0 0 1 1 = 13
1 0 1 1 = 14
0 1 1 1 = 15
1 1 1 1 = 16
BIT
mm
5.6.6 Changing Initial Height Setting
Initial height for plasma piercing is set by a DIP switch on the VHC Sensor board,
as shown in the table at right:
Note: The height value in mm is for reference only. It is not calibrated to this
exact distance.
Adjust the DIP switches as necessary to increase or decrease the initial height.

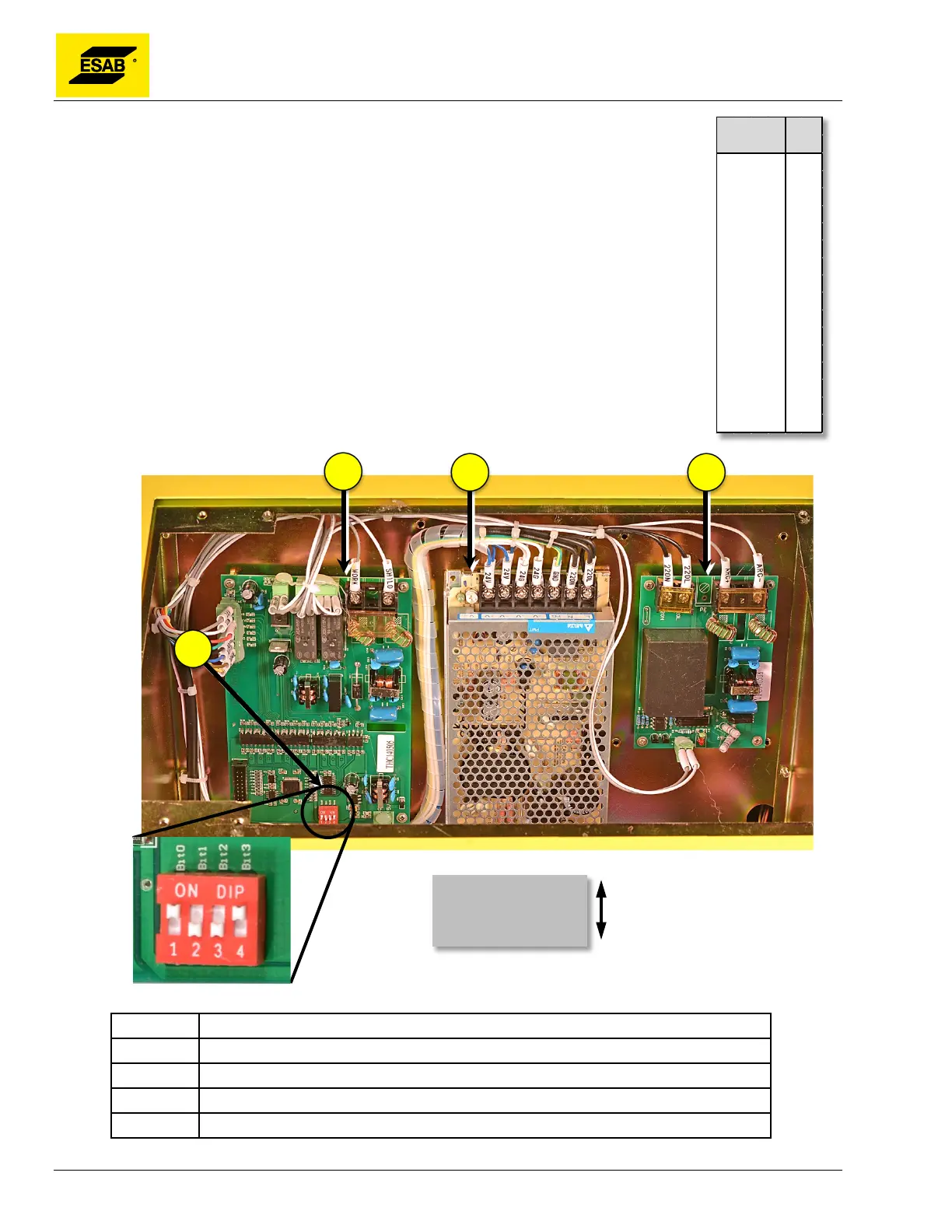

Figure 118: Initial Height DIP Switches
Number Description
1 VHC Sensor Board
2 Main Power Supply
3 Arc Voltage Height Control Board
4 Initial Height Setting DIP Switches
1
2
4
3
Up = ON = 1
Down = OFF = 0
