ESAB Cutting Systems
CROSSBOW Page 153
5.6.7 Reversing Lift Motor Direction
If the torch lifter, lifter cable, or central unit are repaired or replaced, it is possible that the torch lifter
may run in the wrong direction. To reverse direction of the lift motor, use the following procedure:
1) Follow above procedure for Servicing Operator Panel Components.
2) Locate the VHC Sensor PC board.
3) Locate the plug with the two motor wires, at the top of the board.
4) Un-plug the connector from the PC board, and reverse the two wires.
5) Replace the plug and re-assemble the unit.

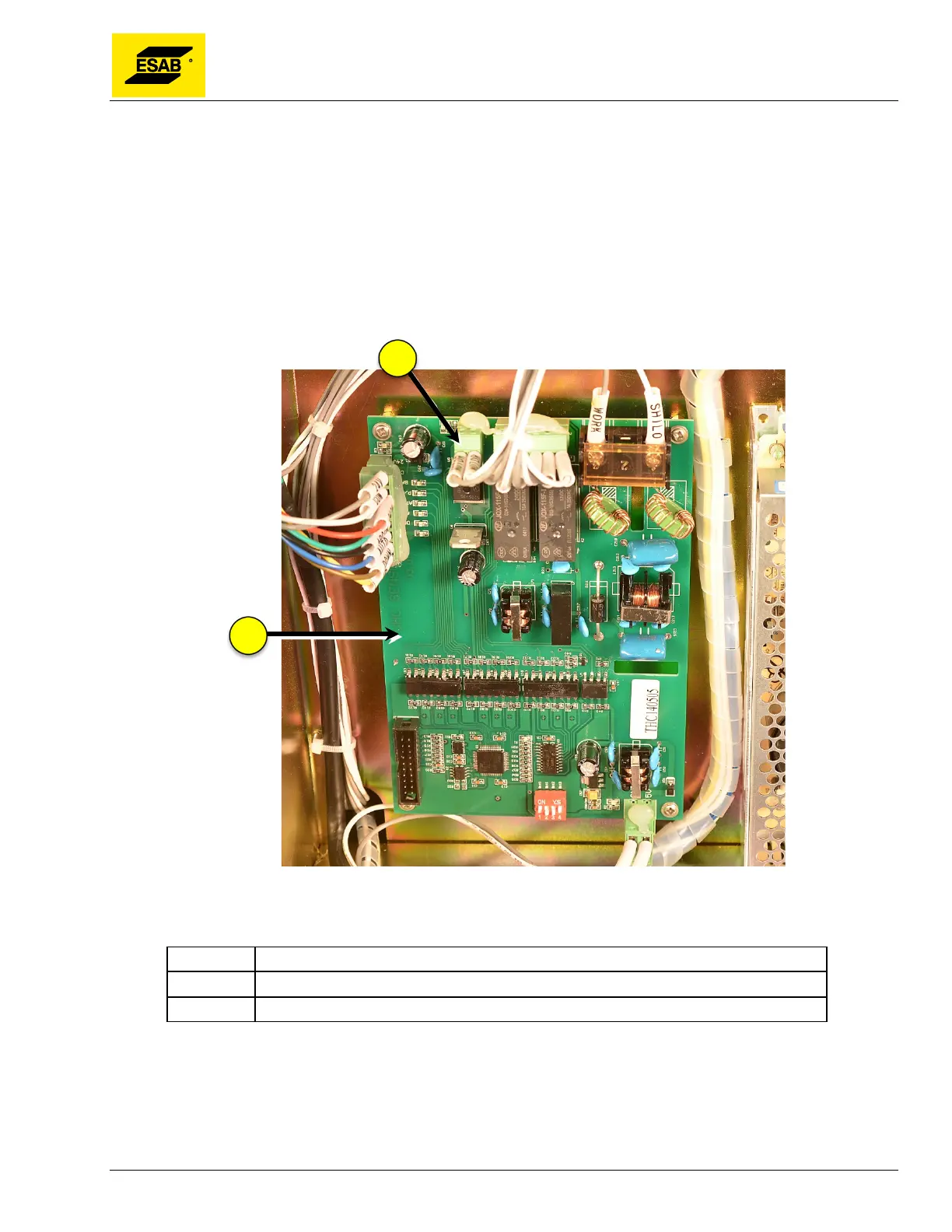

Figure 119: Initial Height Sensing Board
Number Description
1 Motor Plug
2 VHC Sensor Board
