6.3.5 Internal Mechanical Parts

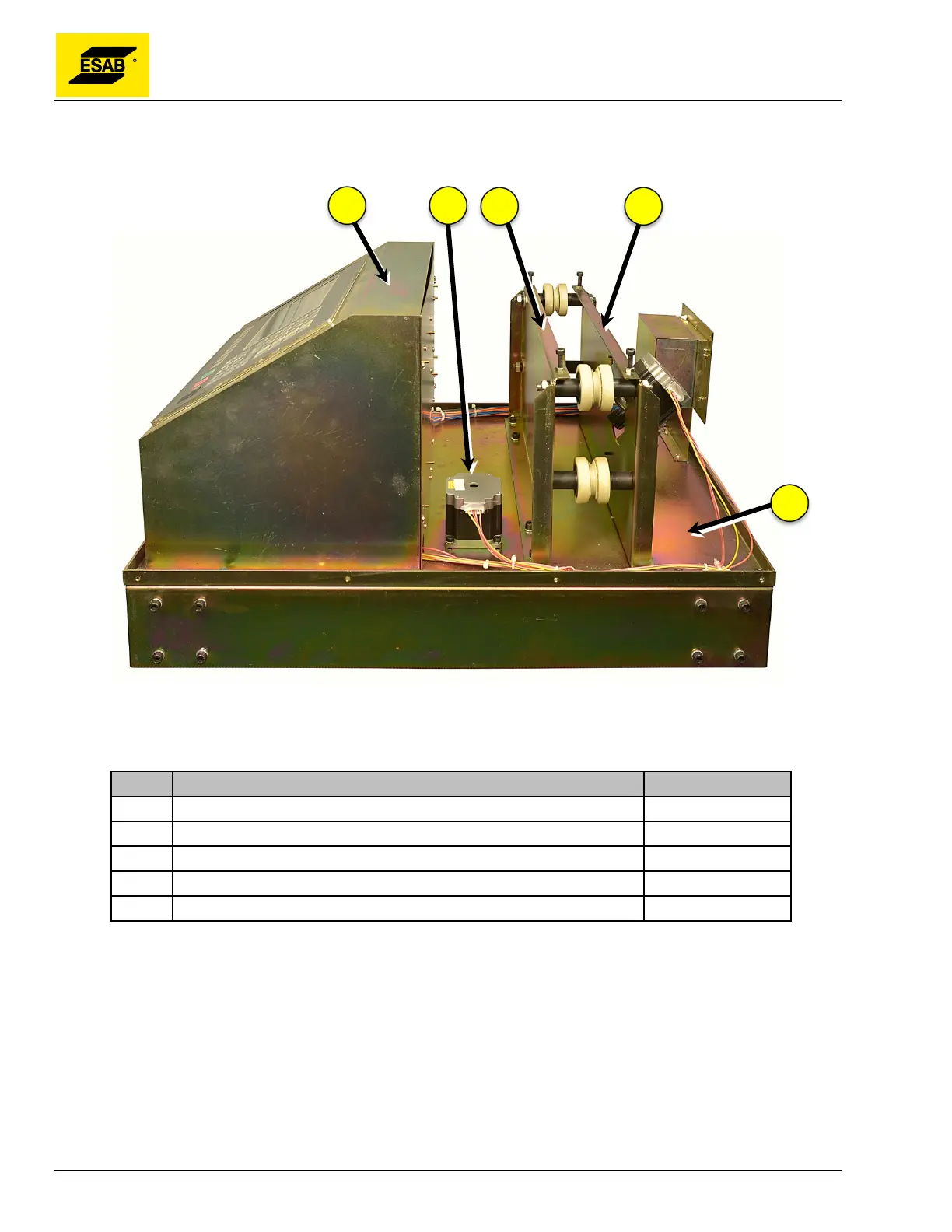

Figure 142: Internal Mechanical Parts
Item Description Part Number
1 Electrical Cabinet 0 004 453 025
2 Stepper Motor 0 004 453 014
3 Forward Cross Drive Mount Panel 0 004 453 020
4 Rear Cross Drive Mount Panel 0 004 453 024
5 Main Bottom Plate 0 004 453 015
1
4
2
3
5
