ESAB CROSSBOW - Parts List and Illustrations

ESAB Cutting Systems
CROSSBOW Page 174
6.3 Parts List
6.3.1 Main Assemblies

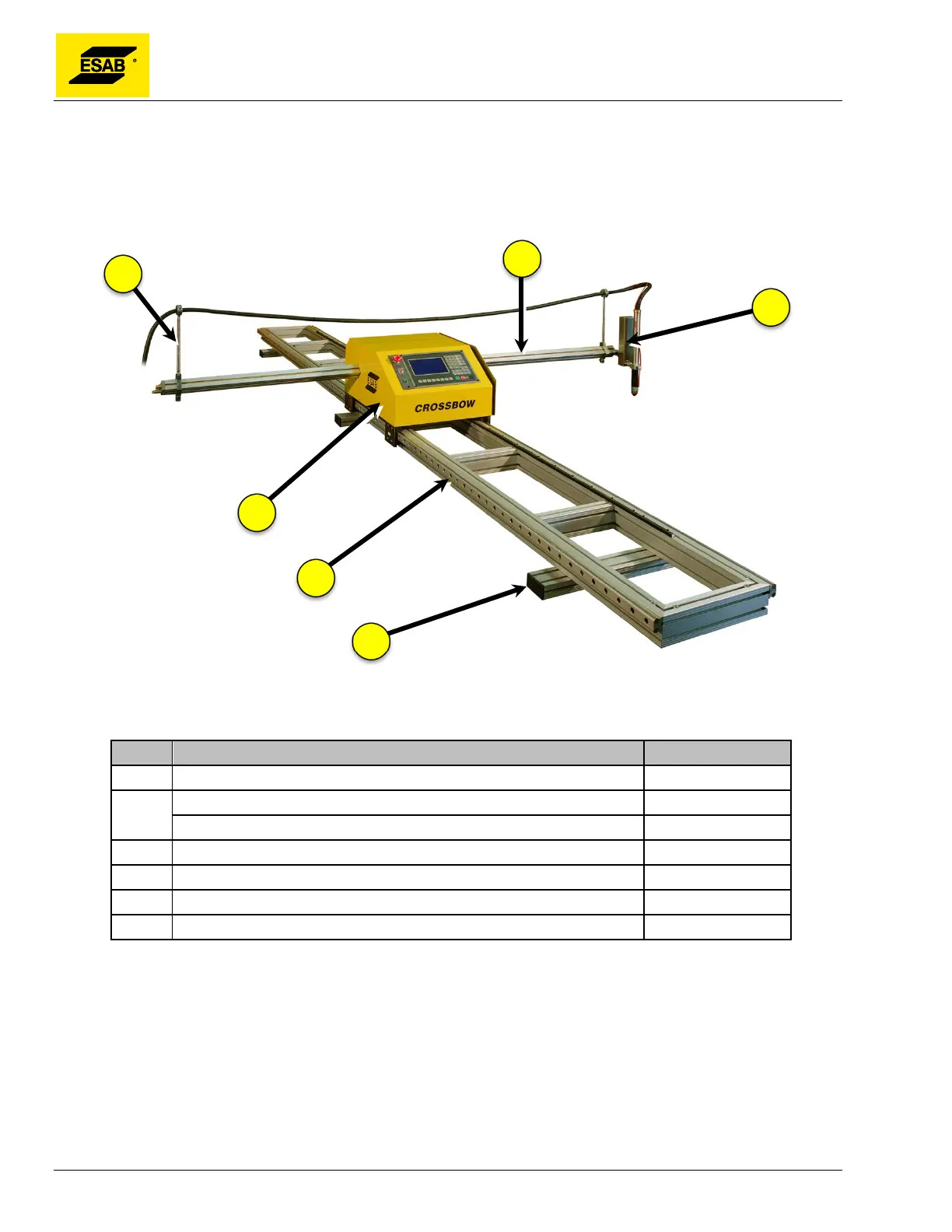

Figure 138: Main Assemblies
Item Description Part Number
1 Central Unit 0 560 954 751
2
Rail Track Assembly, 4000 mm (10’ Travel) 0 004 453 029
Rail Track Assembly, 2200 mm (4’ Travel) 0 004 453 100
3 Stabilizer Feet 0 004 453 064
4 Motorized Lifter 0 004 453 032
5 Cross Beam Assembly 0 004 453 030
6 Cable Holder Assembly 0 004 453 060
1
4
3
2
5
6
