3.2 Base Machine Setup
3.2.1 Prepare Rail Track
Step 1 Invert Rail Track
With the help of a second person, grasp the Rail Track assembly at each end and carefully turn it over
and lay it on its back, avoiding damage to the drive rack. Set the track on pieces of wood to protect the
drive rack from damage.

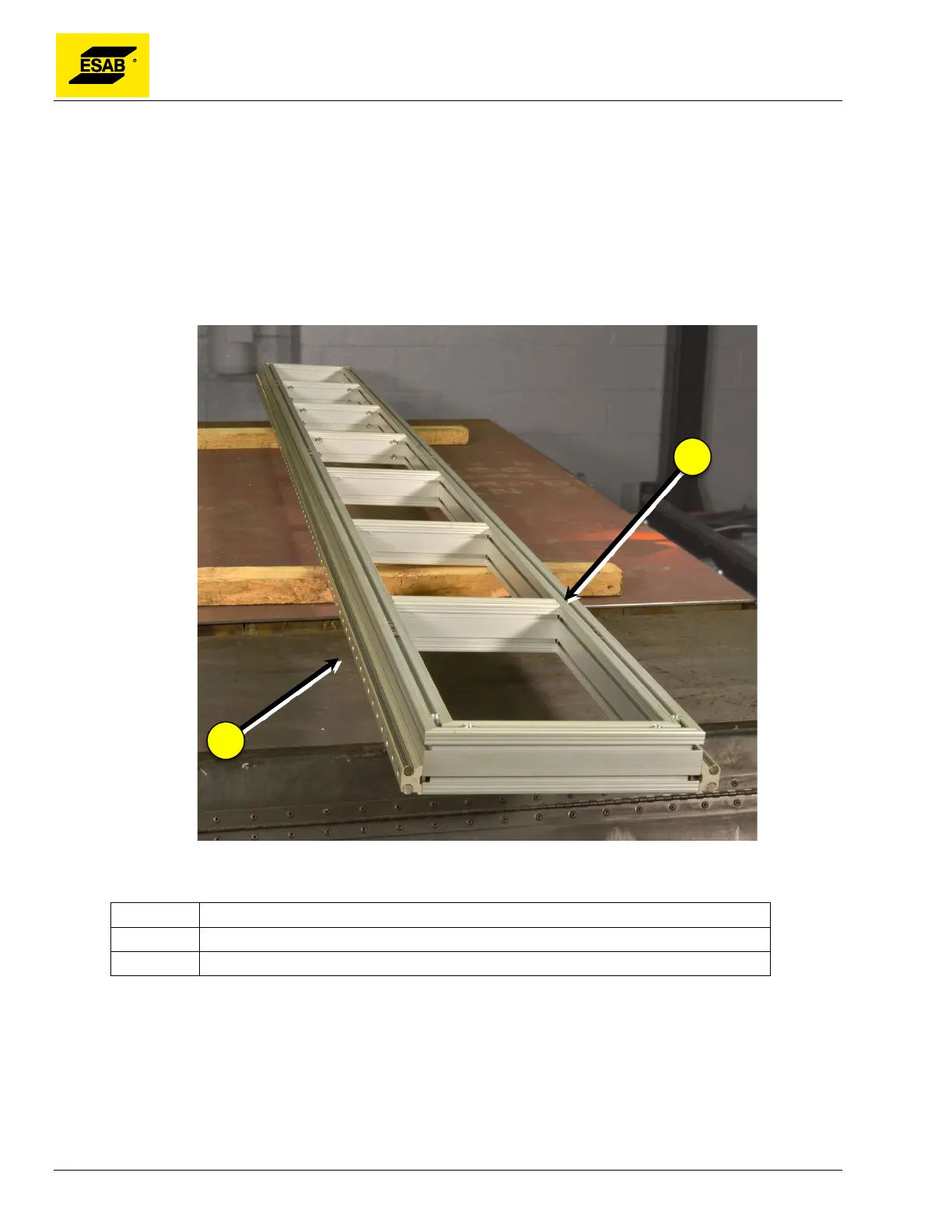

Figure 4: Rail Track Inverted
Number Description
1 Rail Track
2 Drive Rack (underneath)
2
1
