6.3.10 Plasma Torch Parts

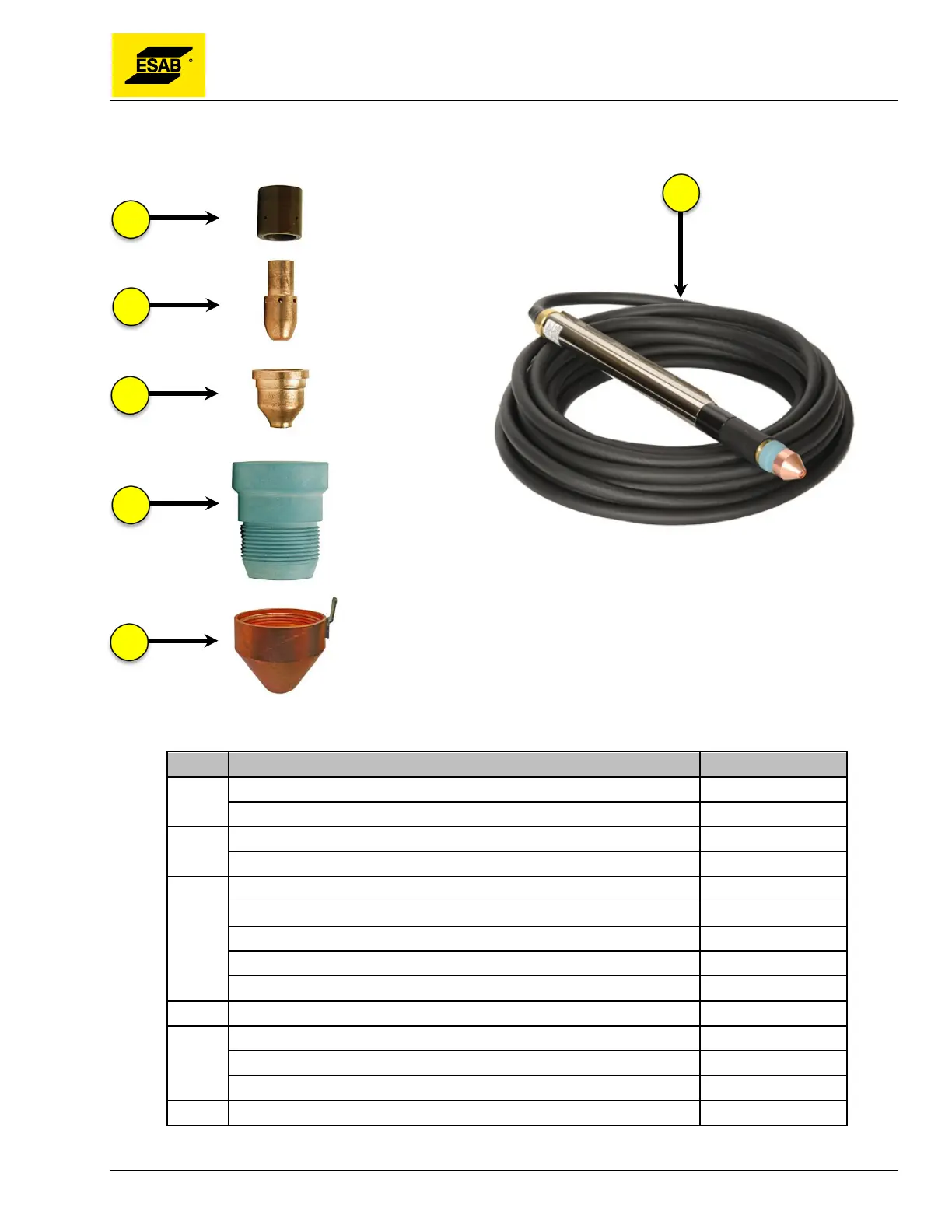

Figure 147: PT-37 Torch and Shield
Item Description Part Number
1
Gas Baffle, 30 – 70 Amp 0558005217
Gas Baffle, 100 Amp 0558004870
2
Electrode, Standard 0558005220
Electrode, Silver 0558004875
3
Nozzle, 50 Amp 0558004878
Nozzle, 60 Amp 0558008417
Nozzle, 70 Amp 0558005219
Nozzle, 90 Amp 0558007680
Nozzle, 100 Amp 0558004879
4 Nozzle Retainer 0558006600
5
Shield with IHS Lug, 30 – 40 Amp 0558012340
Shield with IHS Lug, 50 – 90 Amp 0558012339
Shield with IHS Lug, 100 Amp 0558012338
6 PT-37 Torch, 25’, No Rack 0558004896
6
1
2
3
4
5
