ESAB Cutting Systems
CROSSBOW Page 22
2.2 Machine Components
The Crossbow consists of a Central Unit with CNC, Rail Track assembly with Stabilizer Feet, Cross
Beam with gas tubes, Torch Lifter, and Cable Holders, as shown below. Optionally, the machine may
be equipped with an oxy-fuel torch or a plasma torch. If the machine is purchased with both oxy-fuel
and plasma torches, one torch must be removed in order to install and use the other.

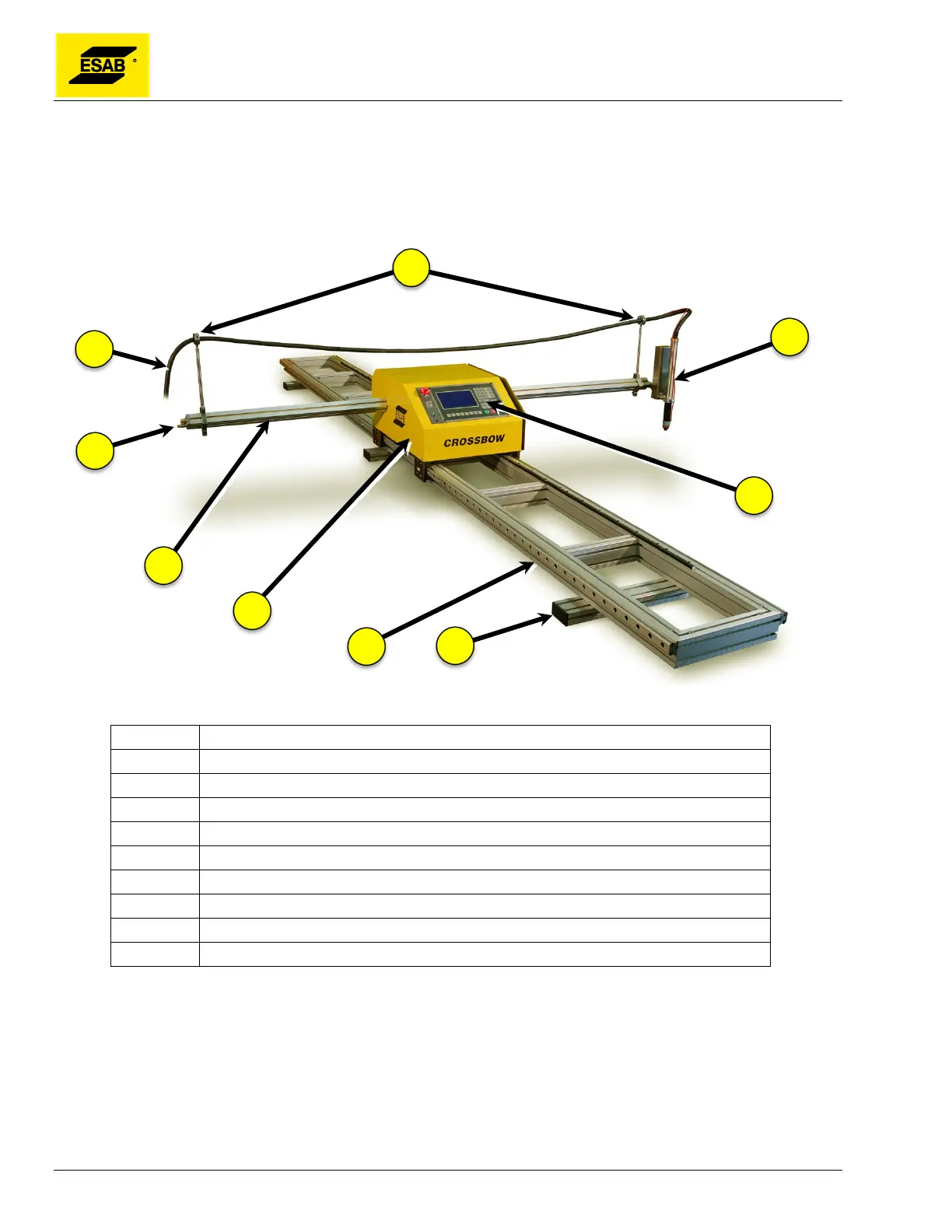

Figure 1: Crossbow Machine Components
Number Description
1 Central Unit
2 Rail Track
3 Stabilizer Feet
4 Cross Beam
5 Torch Lifter Station
6 Cable holders
7 Plasma Torch Lead/Hoses
8 Oxy-Fuel Gas Inlets
9 CNC / Operator Interface
