ESAB Cutting Systems
CROSSBOW Page 164
5.6.17 Replacing Drive Motor
If a drive motor requires replacement, use the following procedure:
1) Follow the above procedure for Removing the Cover.
2) Un-plug the electrical connection to the Drive Motor.
3) X-Axis Motor (Cross Axis): Remove the four screws mounting the motor to the adjusting plate.
Do not loosen screws on the Motor Mounting Plate.
4) Y-Axis Motor (Rail Axis): Remove the four screws mounting the motor to the base plate.

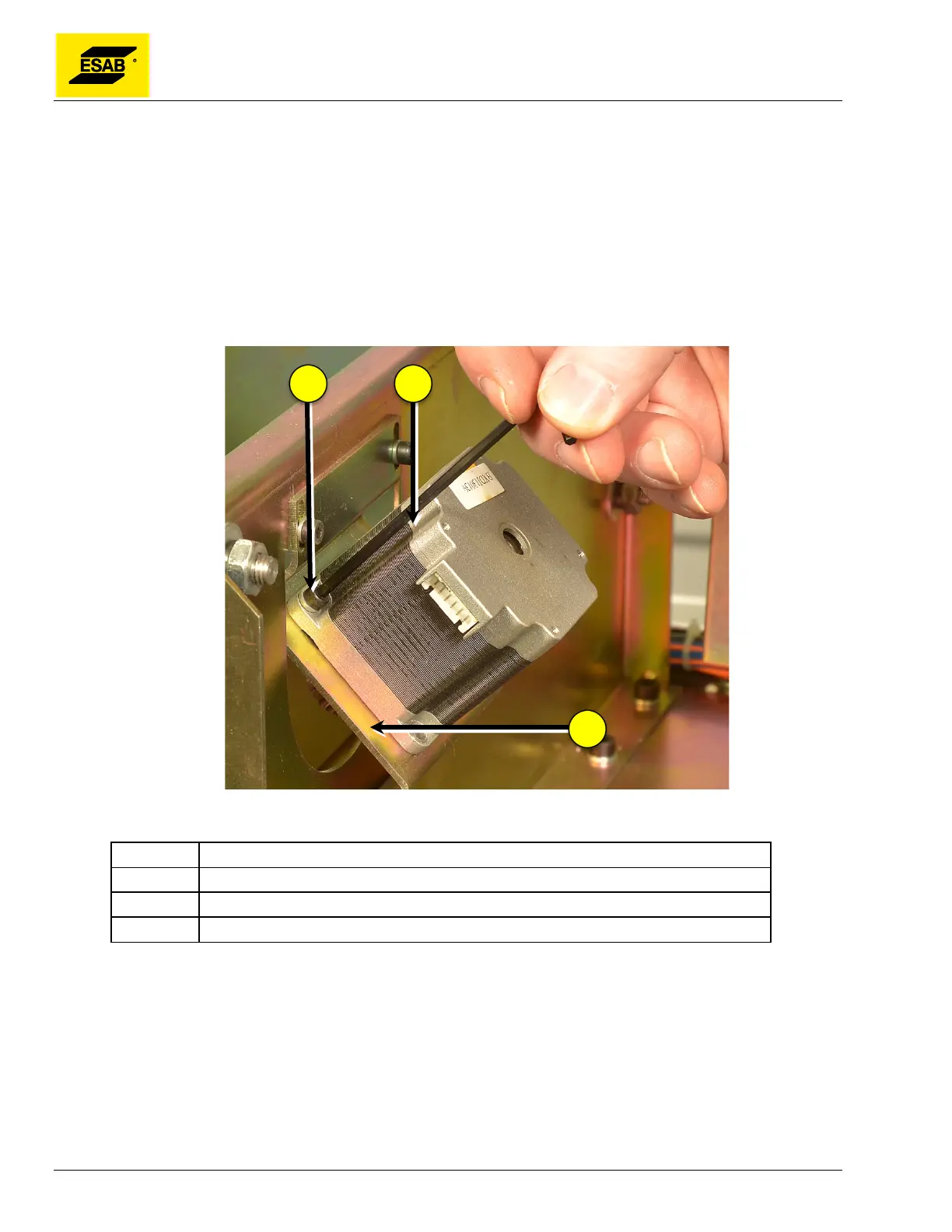

Figure 130: Removing Drive Motor
Number Description
1 Motor Mounting Screws
2 Drive Motor
3 Motor Mounting Plate
