ESAB Cutting Systems
CROSSBOW Page 35
3.2.3 Install Cross Beam Assembly
Handle the Cross Beam assembly with care to avoid damage to the gas fittings, gas pipes, solenoid
valve, and the electrical plugs.
Step 1 Lift and hold Cross Beam
Carefully lift the Cross Beam and hold it parallel to the floor and perpendicular to the heat-shield on the
side of the Central Unit. Orient the drive rack mounted on the Cross Beam so that it matches the notch
in the Central Unit, as shown below.

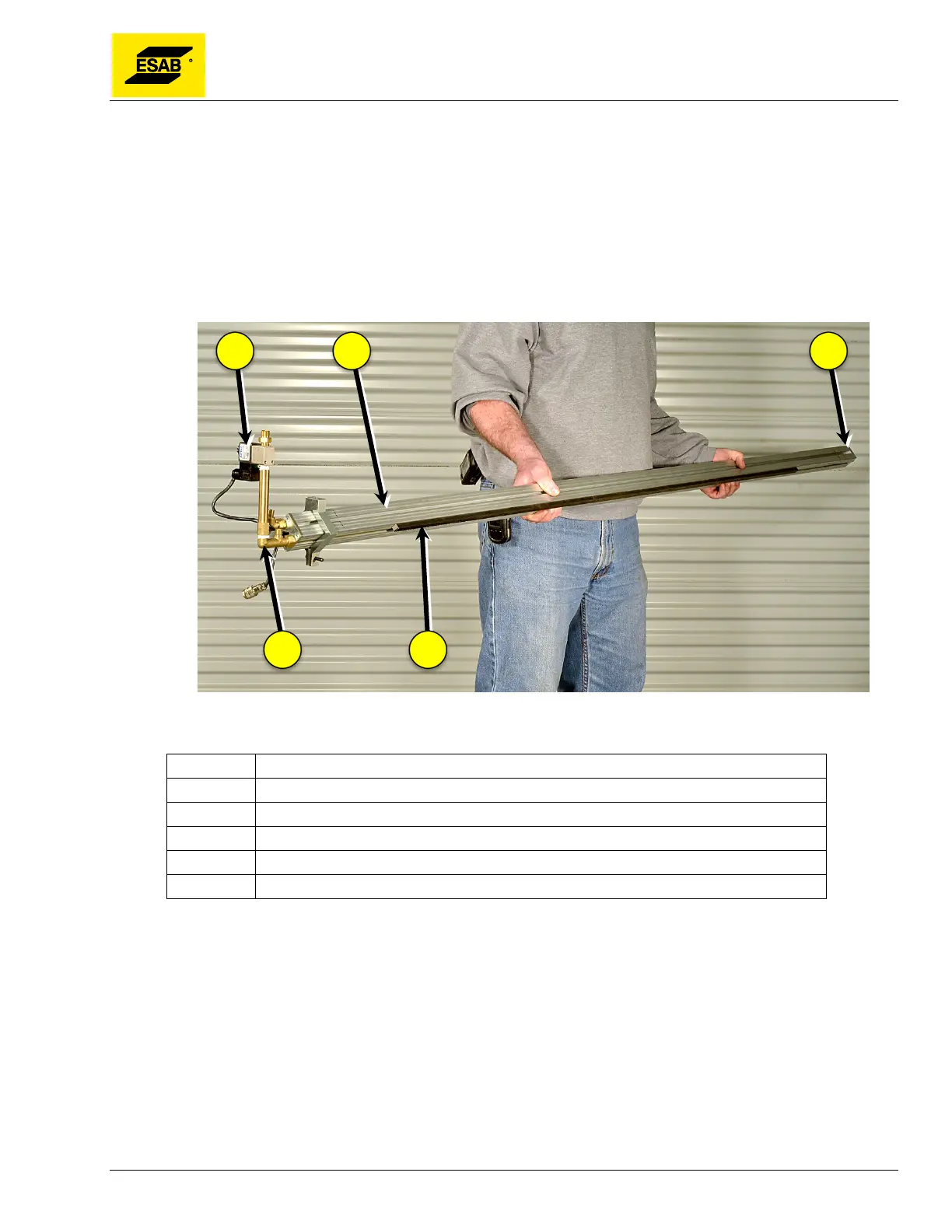

Figure 11: Cross Beam Assembly
Number Description
1 Solenoid Valve
2 Cross Beam
3 Electrical Plug
4 Gas Pipes
5 Drive Rack
