ESAB Cutting Systems
CROSSBOW Page 34
Step 3 Install Rubber Bumper/Stops
The machine is supplied with two rubber bumpers, and a pair of M6x40mm Socket Head Cap Screws.
Install one of these in the last bolt hole at each end of the rail to prevent the Central Unit from sliding off
the end of the Rail Track.
Remove the existing M6 screw from the hole and insert the new one through the rubber bumper and
into the anchor that is in the T-slot.

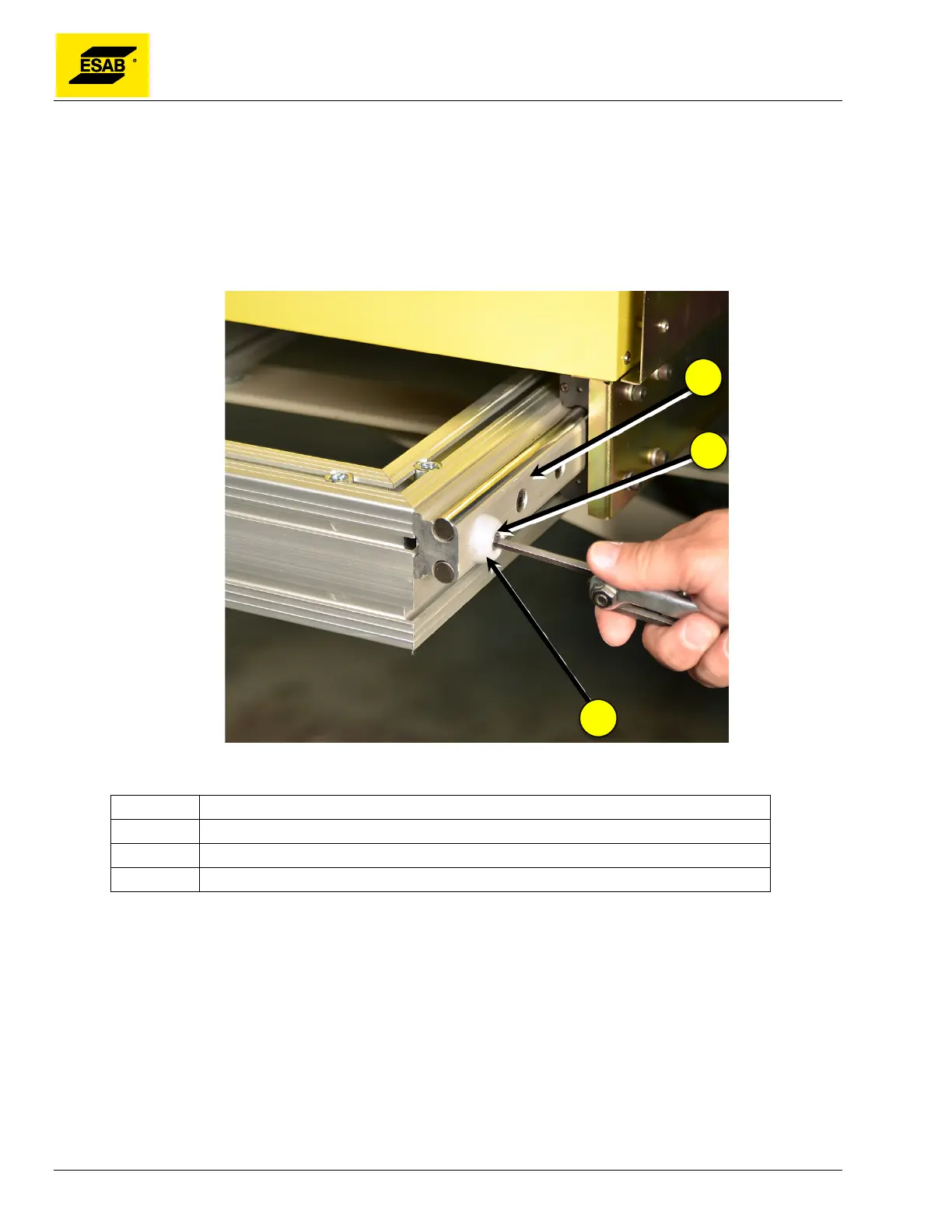

Figure 10: Installing Rubber Bumpers
Number Description
1 Guide Rails
2 M6 x 40mm Screw
3 Rubber Bumper/Stop
