3.3.5 Connect Gas Supplies
Attach the other end of the gas supply hoses directly to the gas regulators (if using cylinders), or to the
outlet of a gas pipeline system. If using a gas pipeline system it must have appropriate regulators,
shut-off valves, and flashback arrestors, per applicable codes.

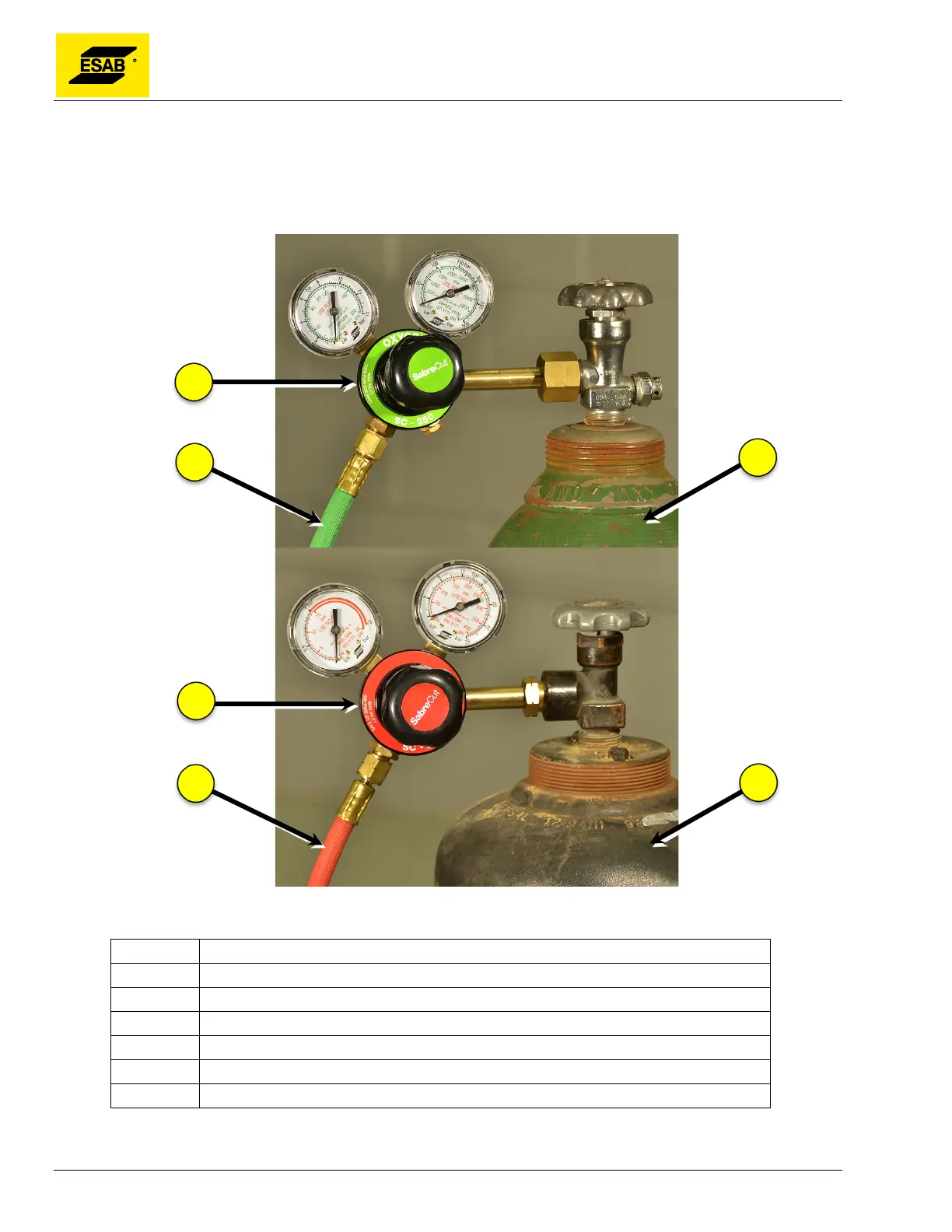

Figure 28: Gas Supply Connections
Number Description
1 Oxygen Regulator (Customer Supplied, contact ESAB for part numbers)
2 Oxygen Supply Hose, Part Number 0560949439
3 Oxygen Cylinder (Customer Supplied)
4 Fuel Gas Regulator (Customer Supplied, contact ESAB for part numbers)
5 Fuel Gas Supply Hose, Part Number 0560949423
6 Fuel Gas Cylinder (Customer Supplied)
1
3
2
5
4
6
