ESAB Cutting Systems
CROSSBOW Page 135
5.2 Lubrication Points
Clean and lubricate Torch Lifter Screw and Torch Lifter Guide Rods.
1) Remove lift cover by removing top two cover mounting screws, and loosening the two lower
cover mounting screws.
2) Slide cover off Torch Lifter by pulling it upwards.
3) Clean any dust or soot accumulation from Torch Lifter Screw and Torch Lifter Guide Rods.
4) Lubricate Torch Lifter Screw and Torch Lifter Guide Rods with high quality lithium grease.

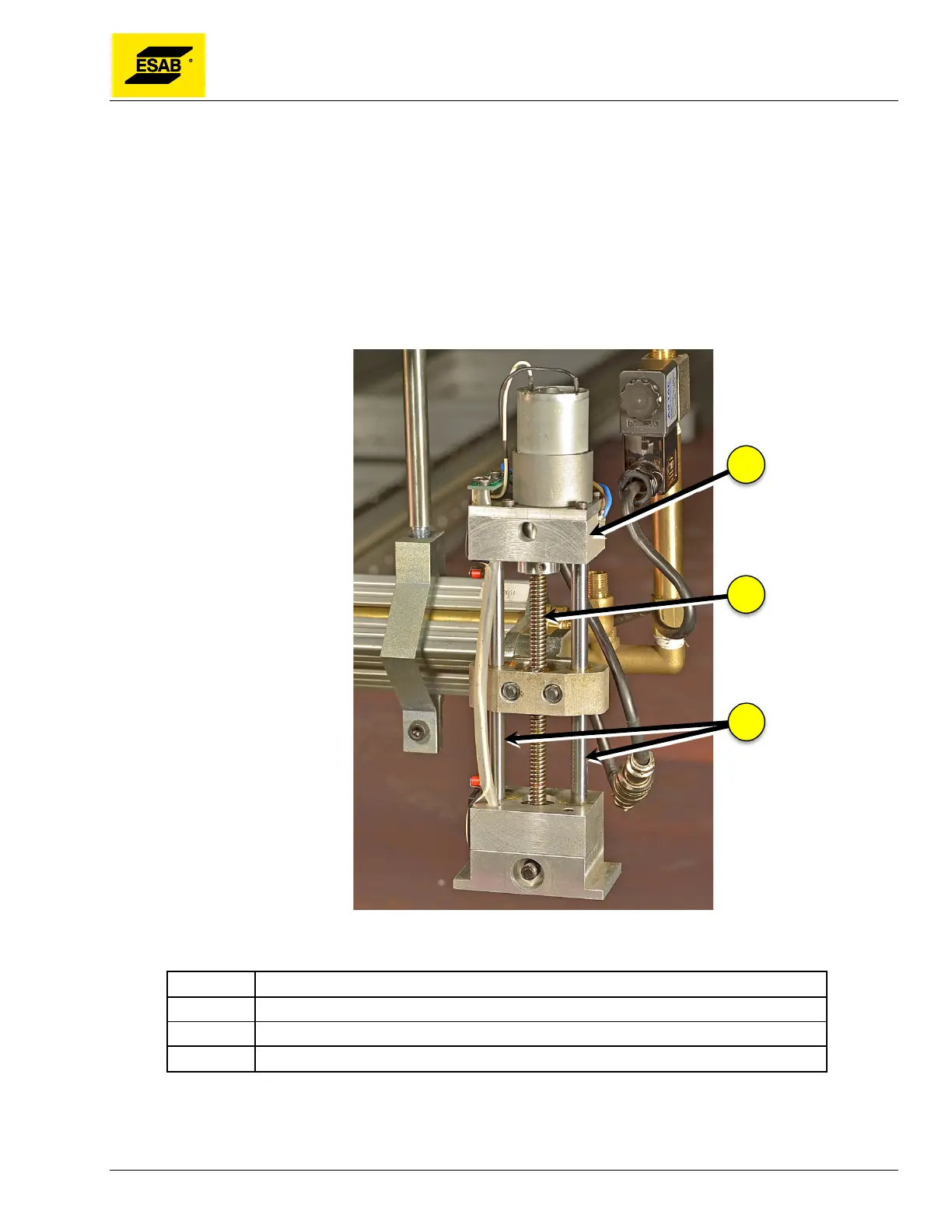

Figure 106: Torch Lifter with Cover Removed
Number Description
1 Torch Lifter (Cover Removed)
2 Lifter Screw
3 Guide Rods
