ESAB CROSSBOW - Internal Drive System Parts

ESAB Cutting Systems
CROSSBOW Page 179
6.3.6 Internal Drive System Parts

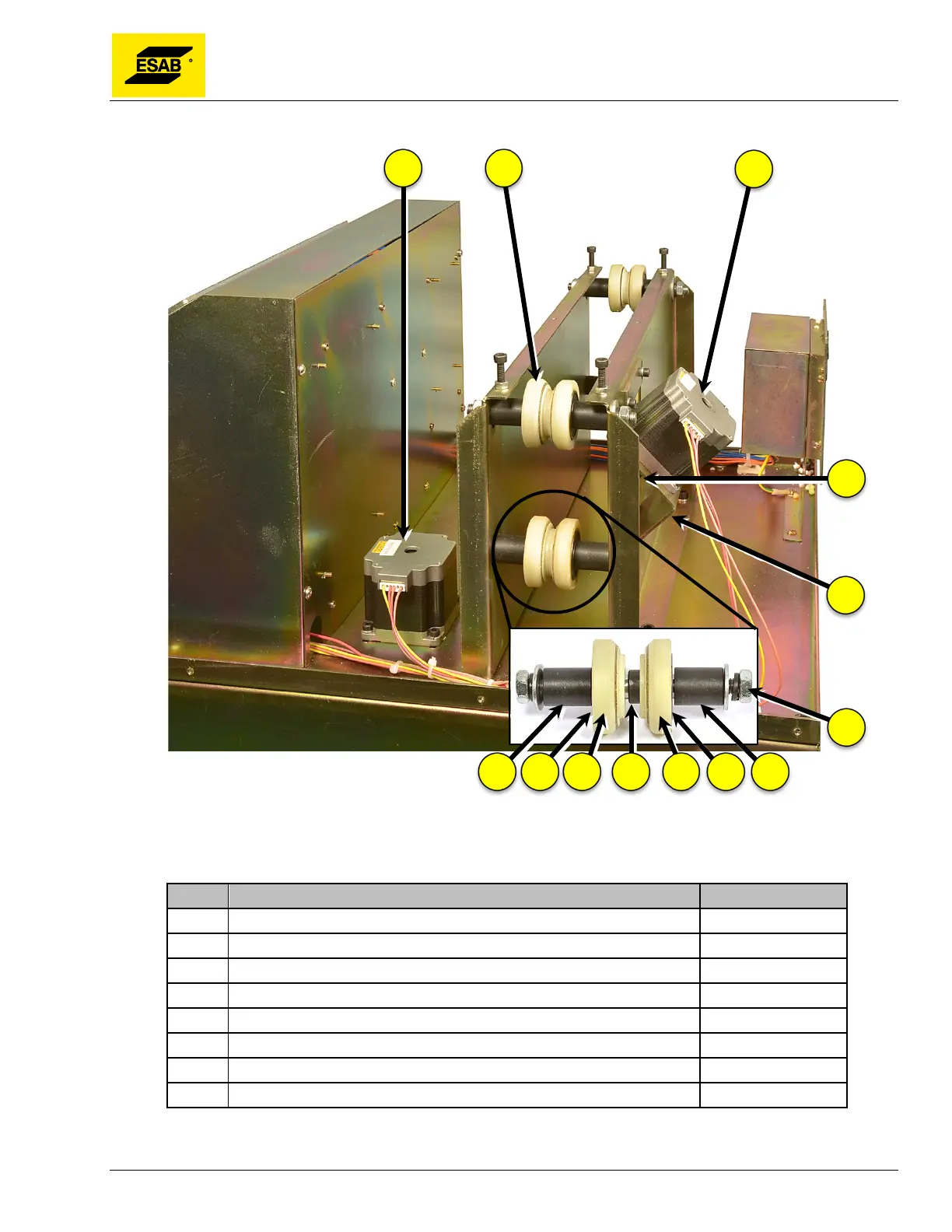

Figure 143: Internal Drive System Parts
Item Description Part Number
1 Stepper Motor 0 004 453 014
2 V-Wheel 0 004 453 021
3 Drive Pinion 0 004 453 013
4 Cross Drive Motor Mounting Plate 0 004 453 023
5 Centering Spacer Sleeve 0 004 453 028
6 Ball Bearing 0 004 453 027
7 V-Wheel Spacer 0 004 453 059
8 V-Wheel Shaft 0 004 453 022
1
1
3
2
5
6
2
7
2
6
5
8
4
