ESAB Cutting Systems
CROSSBOW Page 81

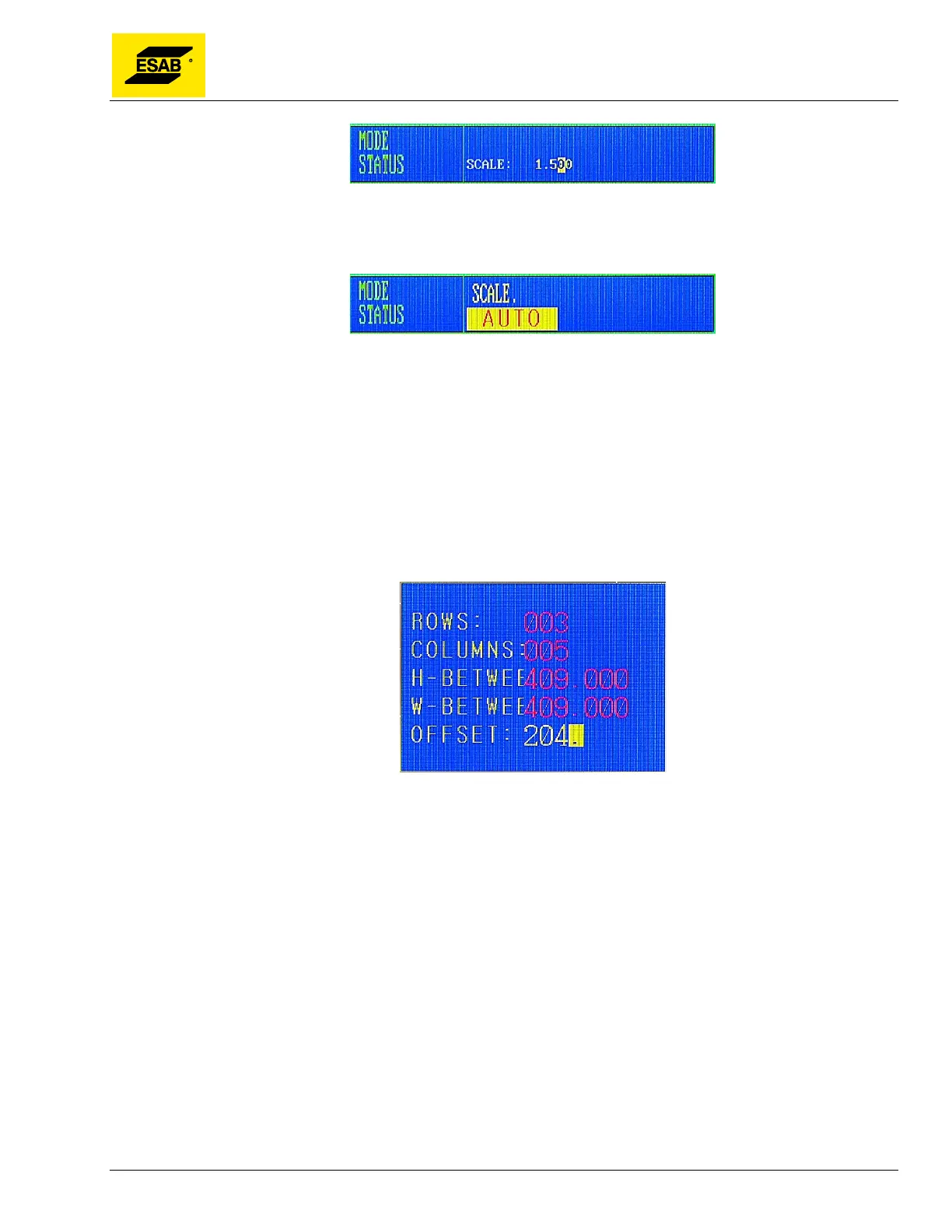

Figure 54: Entering the Scaling Factor
Enter numbers proportionally larger than 1.000 to enlarge the program, or proportionally smaller than
1.000 to shrink the program.
Figure 55: SCALE Indicator
SCALE is displayed on screen in the Mode/Status indicator area, and the scaling factor is shown in the
Operating Parameters area. To turn off press 【F5】again in the Auto Mode, More menu. Scaling
factor is stored and can be re-used, or set to zero by repeating this procedure.
4.12.6 【F6】NEST
The Nest function allows a single part program to be nested using pattern nesting, (columns and rows).
A program must be loaded before using the Nest function. Press 【F6】to start a Nest. The Nesting
Dialog will appear, as shown below.
Figure 56: NEST Dialog
Enter the number of rows (number of rows one above the other) and the number of columns (number of
parts side-by-side from left-to-right). The default Row Height and Column Width are calculated based
on the size of the part, and can usually be accepted without change. Optionally, the Row-Offset may
be used for circular or other parts that fit better when every other row is offset to the right. When
finished entering these parameters, press 【ENTER】to generate the nest. The result will be displayed
graphically, as shown below.
