ESAB Cutting Systems
CROSSBOW Page 32
3.2.2 Install Central Unit on Rail Track
To avoid damaging the machine, this operation should be done by two-persons. The Central Unit
weighs approximately 28 Kg (61 lbs.).
Step 1 Lift and hold Central Unit
One person must carefully lift and hold the Central Unit near the end of the rail, as shown below. Care
must be taken to avoid bumping the Bearing Blocks into the ends of the Guide rails.

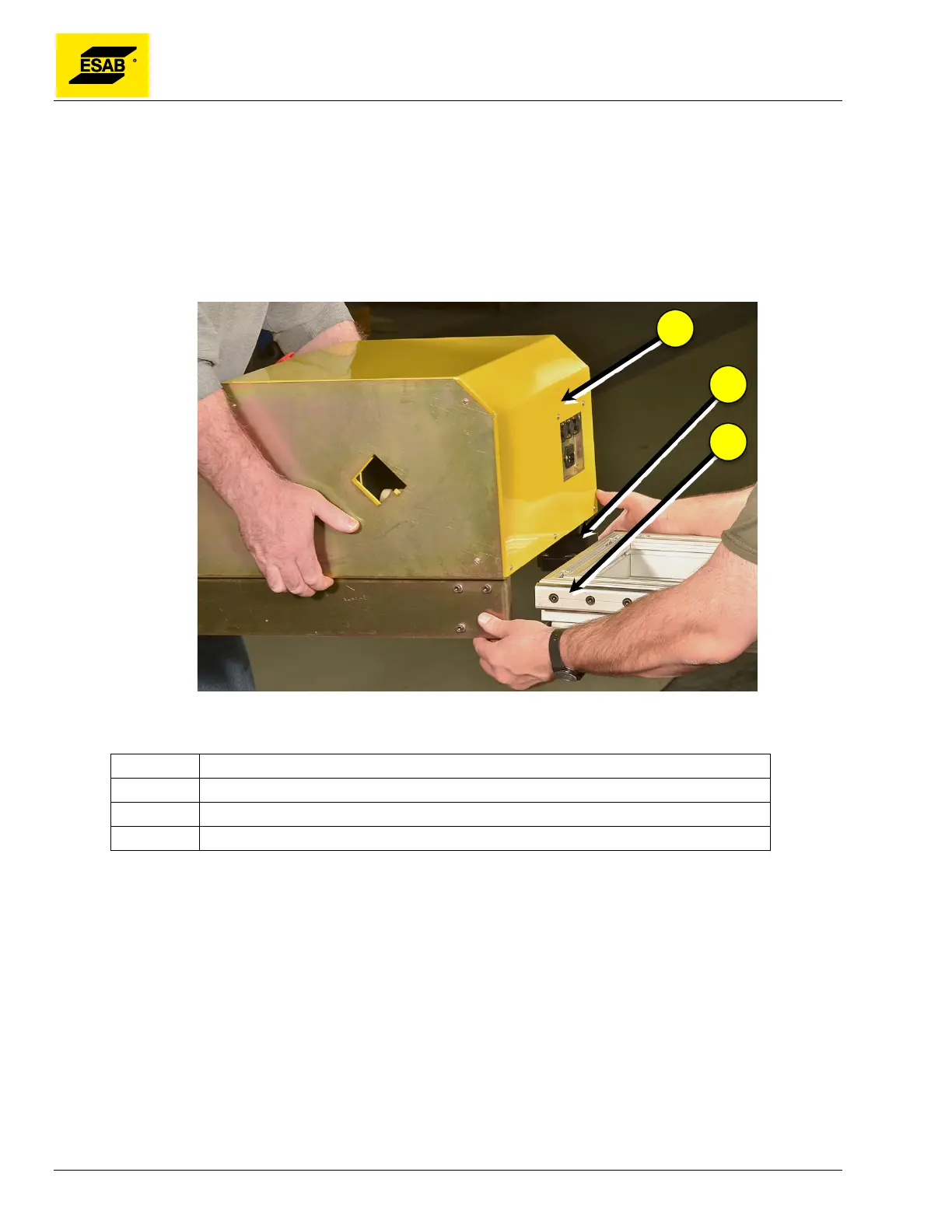

Figure 8: Guiding Central Unit onto Rail Track
Number Description
1 Central Unit
2 Bearing Block
3 Guide Rail
