ESAB CROSSBOW - Central Unit Parts

ESAB Cutting Systems
CROSSBOW Page 175
6.3.2 Central Unit Parts

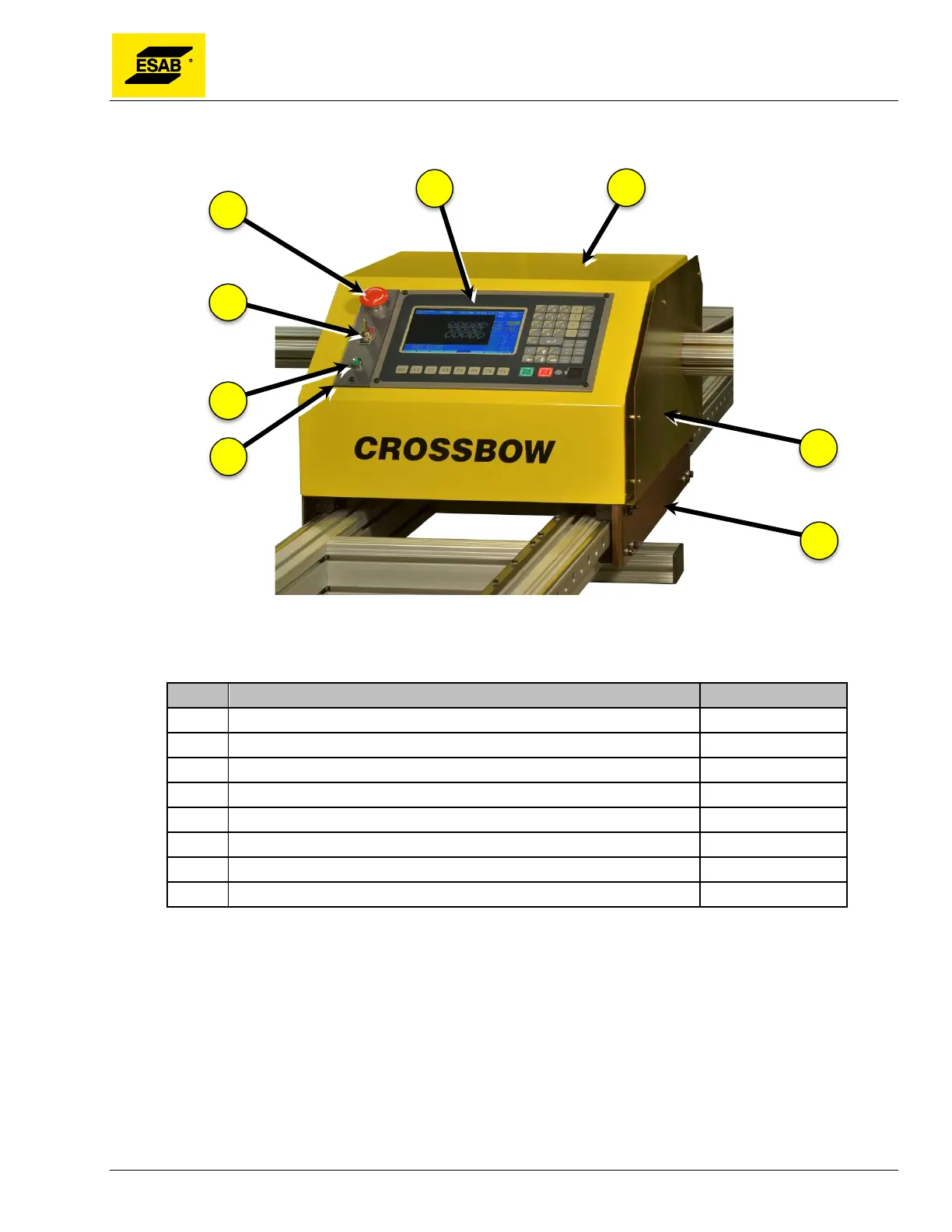

Figure 139: Central Unit Parts
Item Description Part Number
1 E-Stop Pushbutton 0 004 453 002
2 Drive Engage Toggle Switch 0 004 453 003
3 Drive Power Indicator Lamp 0 004 453 004
4 Control Switch Panel Plate 0 004 453 010
5 CNC Unit 0 004 453 008
6 Central Unit Cover 0 004 453 001
7 Heat Shield 0 004 453 007
8 Long Side Bracket 0 004 453 016
1
5
6
7
3
2
4
8
