ESAB CROSSBOW - Replacing Arc Voltage Height Control Board

ESAB Cutting Systems
CROSSBOW Page 154
5.6.8 Replacing Arc Voltage Height Control Board
If the Arc Voltage Height Control Board requires replacement, use the following procedure:
1) Follow above procedure for Servicing Operator Panel Components.
2) Carefully note the position of each wire connected to terminal strip on top of board.
3) Un-wire four wires from terminal strips on top of board.
4) Un-plug wire connector from bottom edge of board
5) Remove four mounting screws at corners of board.
6) Board may now be removed and replaced.

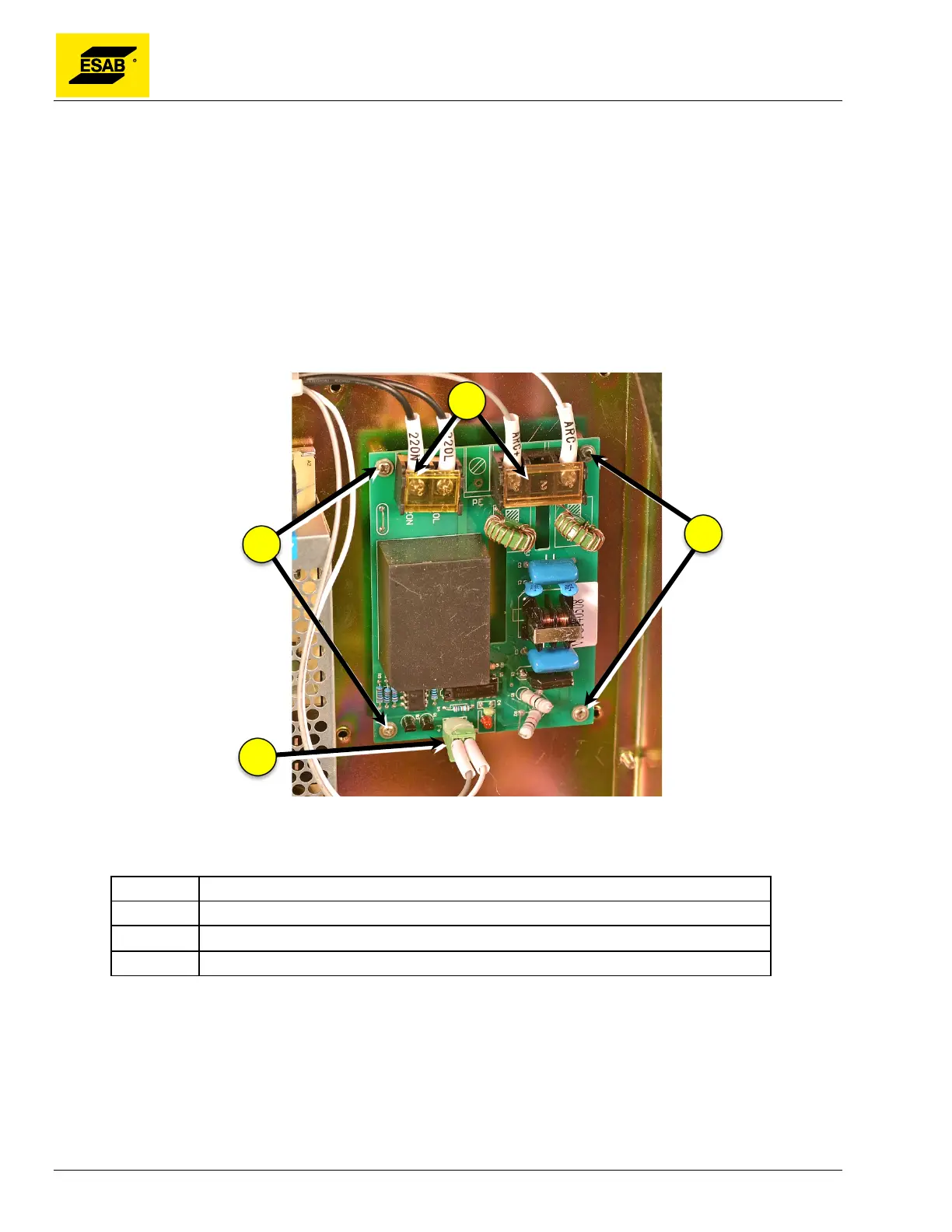

Figure 120: Arc Voltage Board
Number Description
1 Wire Terminals
2 Mounting Screws
3 Connector Plug
2
1
2
3
