CROSSBOW Page 53
3.4.2 Install Plasma Torch
Have the torch fully assembled before inserting into the torch holder to prevent damage to the threads
on the torch body. Assemble the PT-37 plasma torch with one of the Shields with IHS Lug. Insert the
torch into the torch holder, rotating as necessary so the IHS Lug fits through the torch holder.

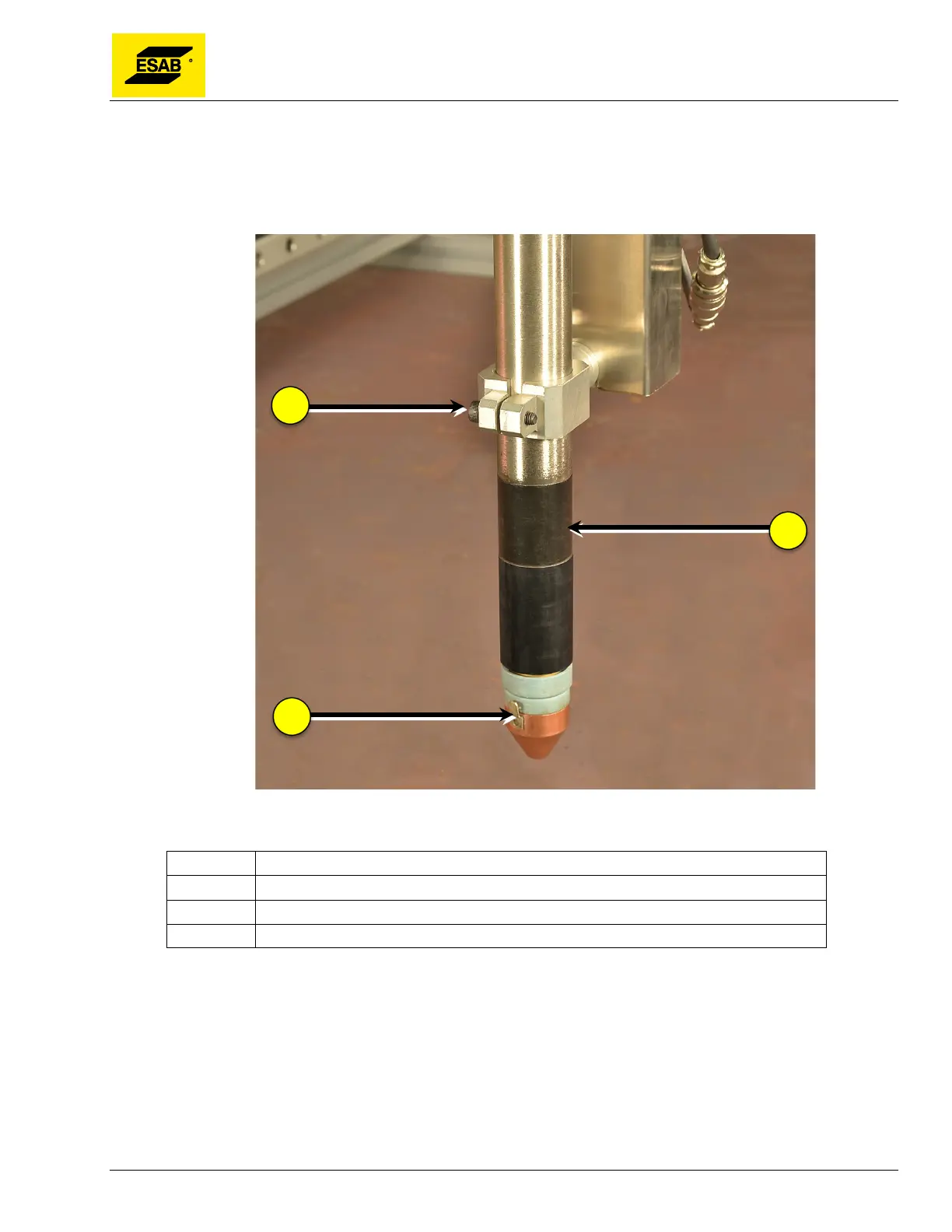

Figure 30: Plasma Torch Installed in Torch Holder
Number Description
1 Torch Holder
2 PT- 37 Plasma Torch
3 Shield Cap with IHS Lug
2
1
3
