CROSSBOW Page 48
3.3.3 Connect Torch Hoses
Connect the three torch hoses to the gas pipe fittings, as shown. Be sure to connect preheat oxygen
and cutting oxygen hoses to the correct fittings. The Cutting Oxygen fitting is connected to outlet of
solenoid valve.

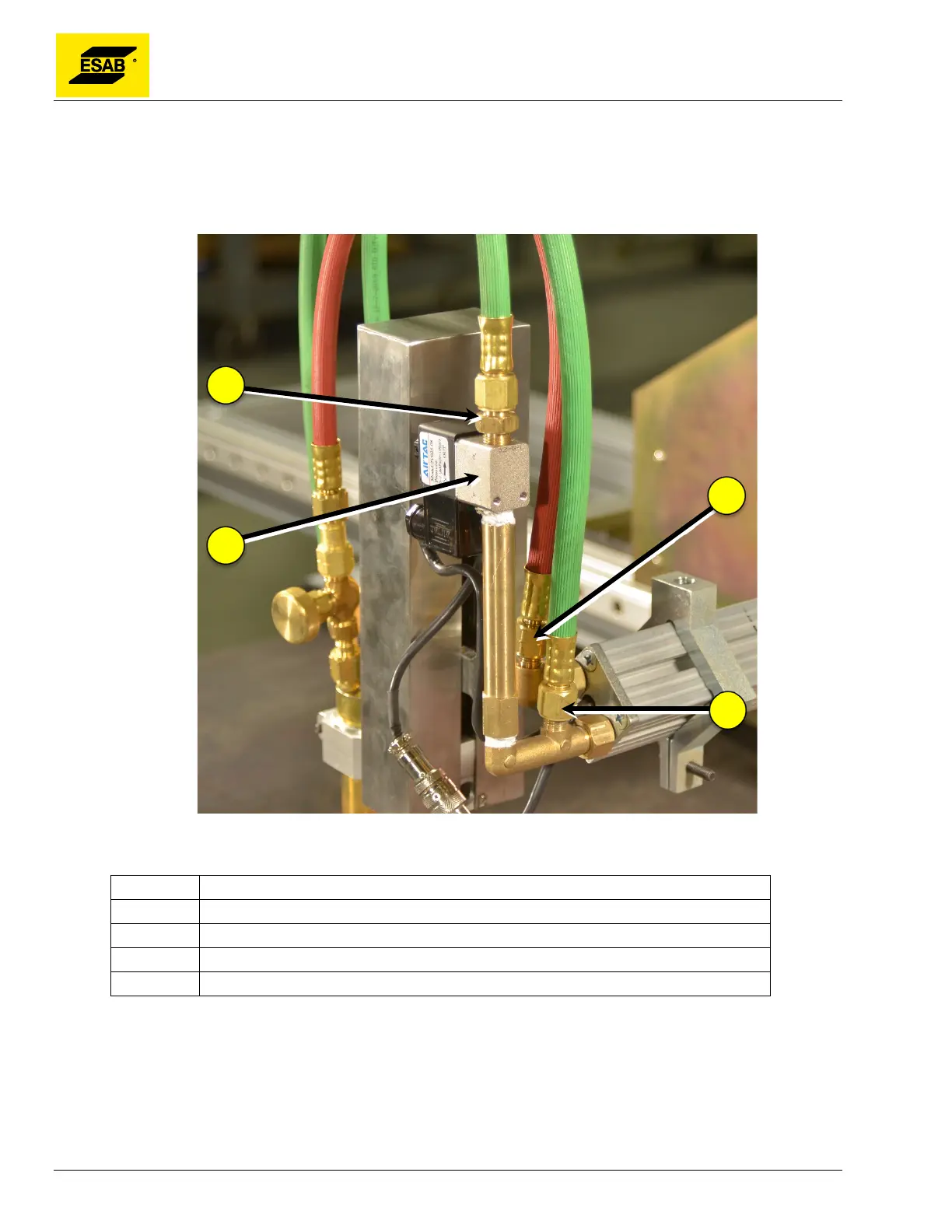

Figure 26: Connecting Torch Hoses
Number Description
1 Cutting Oxygen Connection
2 Fuel Gas Connection
3 Preheat Oxygen Connection
4 Solenoid Valve
2
1
4
3
