3.2.4 Install Torch Lifter
Step 1 Mount Torch Holder to Motorized Lifter
Insert the supplied M8 screw through the back of the Torch Lifter and into the Torch Holder then
tighten. Make sure the Torch Holder is level, perpendicular to the Torch Lifter.

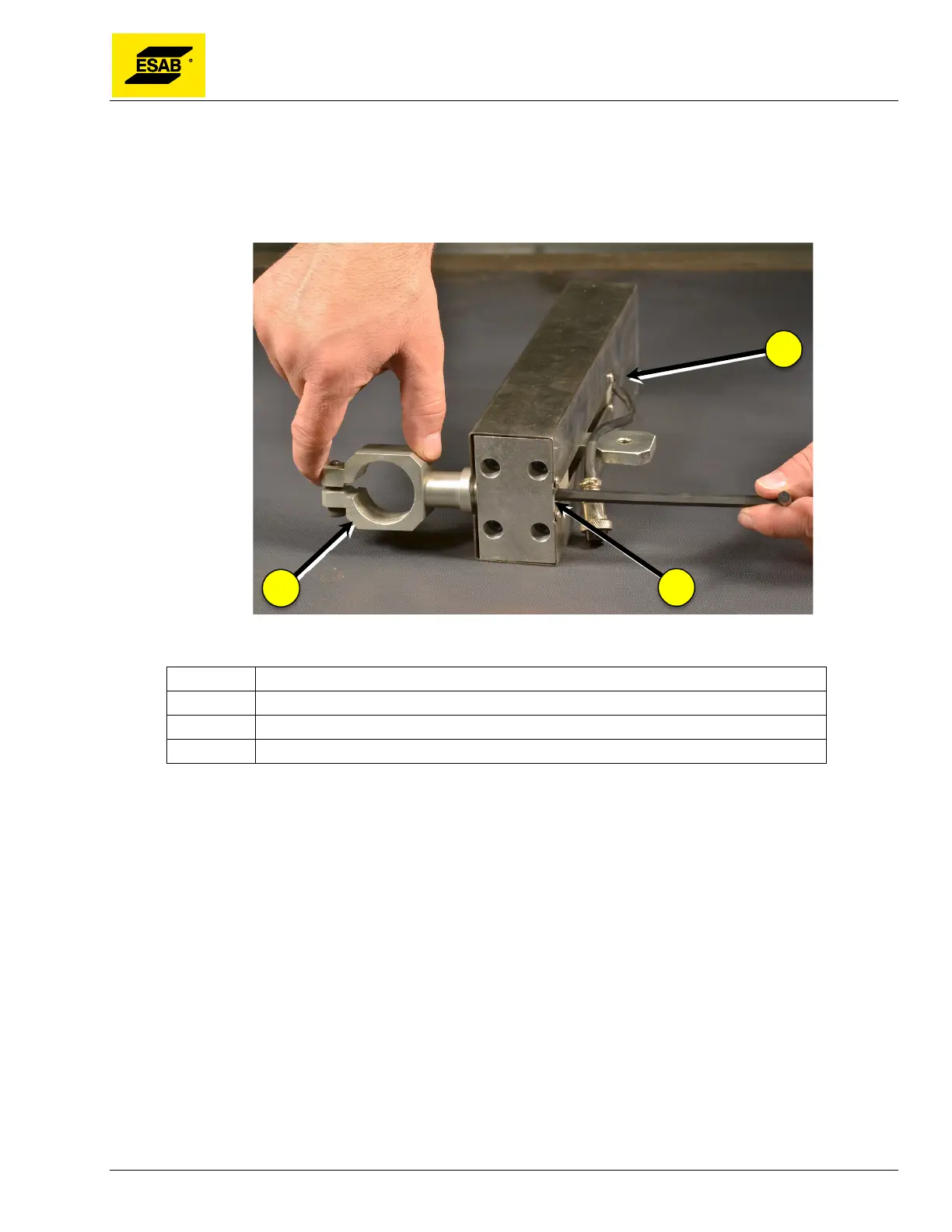

Figure 15: Mounting Torch Holder
Number Description
1 Torch Holder
2 Torch Lifter
3 M8 Screw
2
1
3
