ESAB Cutting Systems
CROSSBOW Page 40
Step 2 Mount Motorized Lifter to Cross Beam
Insert the supplied M8 screw through the hole in the mounting tang on the end of the Cross Beam,
through the Joint Spacer, and into the threaded hole on the Torch Lifter mounting lug. Adjust the Torch
Lifter until it is vertical and then tighten the screw.

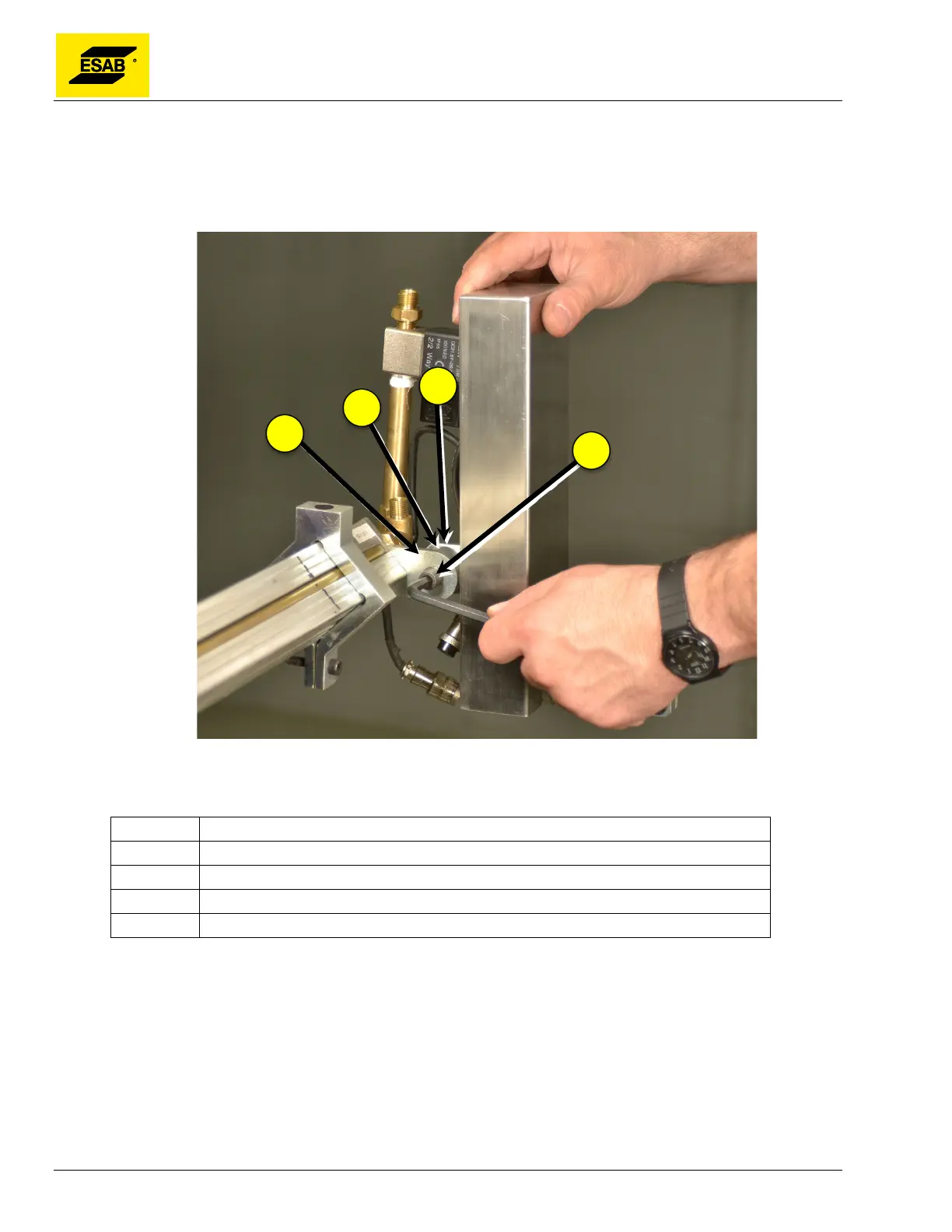

Figure 16: Mounting Torch Lifter
Number Description
1 Lift Mounting Tang, Cross Beam
2 Joint Spacer
3 Torch Lifter Mounting Lug
4 M8 Screw
2
1
3
4
