5.6 Hardware Service Instructions
5.6.1 Replacing Main Fuse
The main fuse is located inside the inlet power connector on the Connector Panel at rear of Central
Unit.
1) Remove all incoming power from the unit.
2) Use a small, flat-head screwdriver to pull out the fuse holder
3) Replace the fuse only with the same type and rating of fuse.

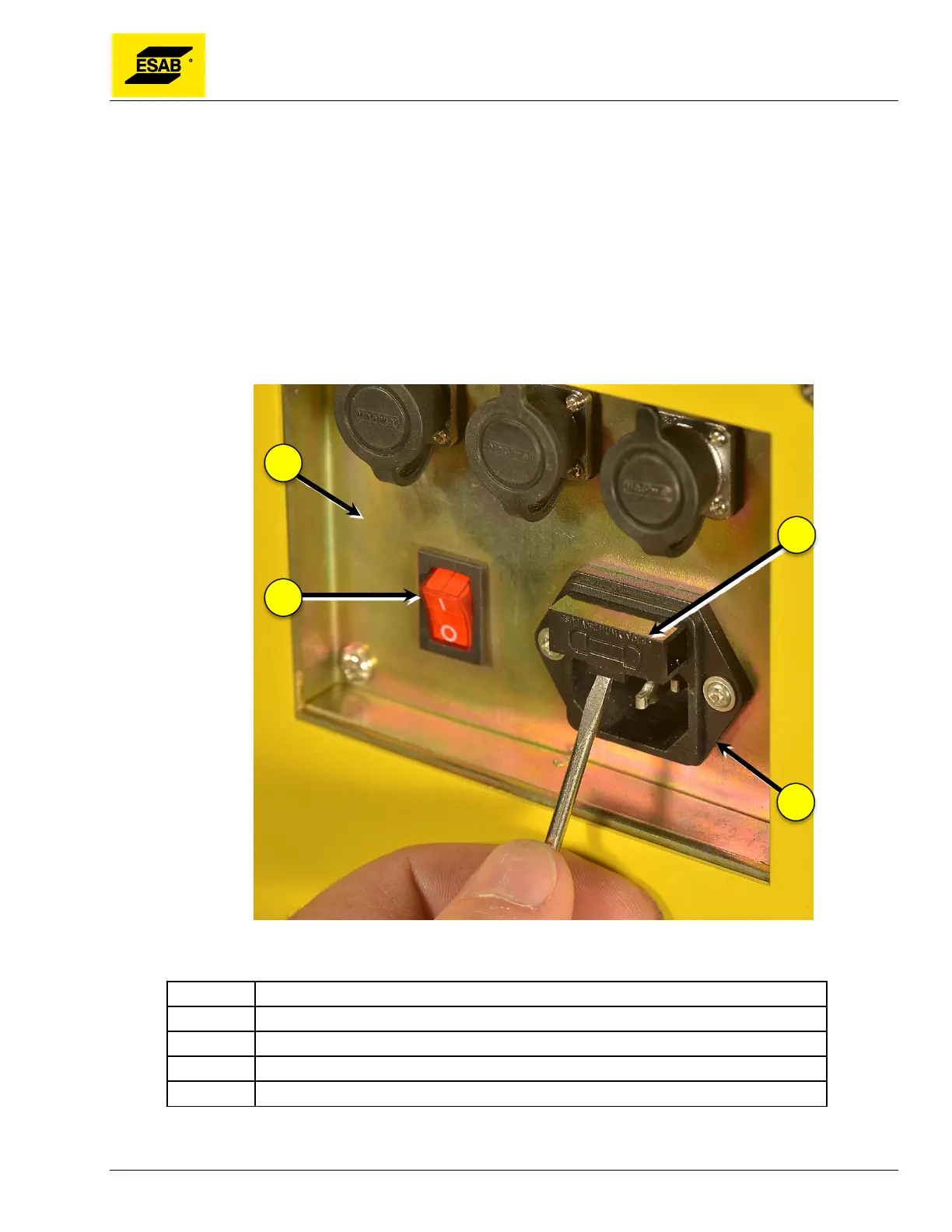

Figure 111: Accessing Main Fuse
Number Description
1 Central Unit
2 Power Switch
3 Main Power Fuse
4 Power Connector
