ESAB Cutting Systems
CROSSBOW Page 33
Step 2 Carefully guide Bearing Blocks onto Guide Rails
A second person should carefully guide the Bearing Blocks onto the Guide Rail, as shown above. Once
the first set of Bearing Blocks are completely on the Guide Rail, carefully move the unit further onto the
Rail Track while holding it level. The second person should then guide the second set of Bearing
Blocks onto the end of the Guide Rail.
After the second set of Bearing Blocks is completely on the Guide Rail, slowly push the machine
completely onto the Rail Track until the drive pinion has engaged with the Drive Rack.

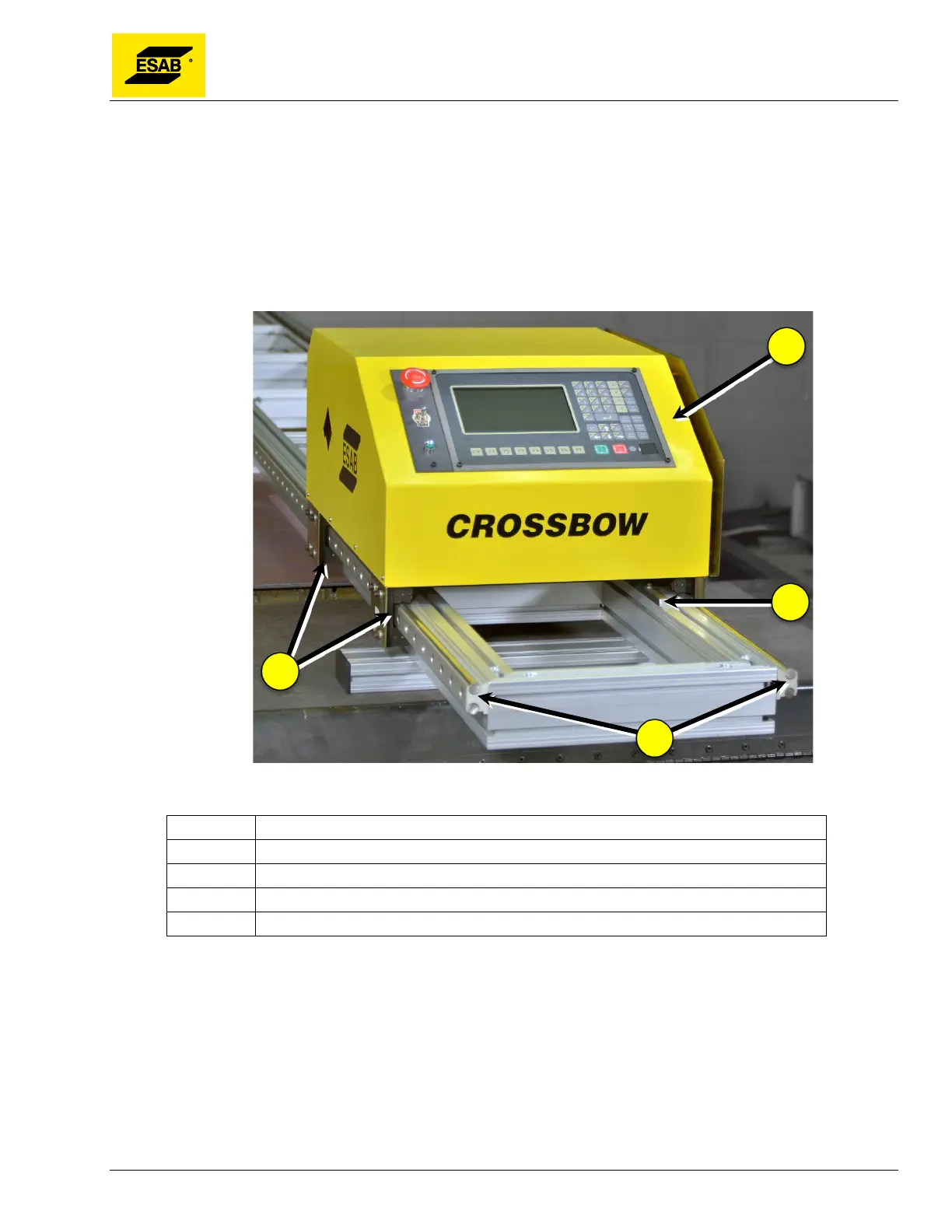

Figure 9: Central Unit on Rail Track
Number Description
1 Central Unit
2 Bearing Blocks
3 Guide Rails
4 Drive Rack
