ESAB Cutting Systems
CROSSBOW Page 169
5) Un-plug Coil Socket from coil by removing Anchor Screw.
6) Unscrew valve body from pipe.
7) Unscrew hose fitting from valve body.

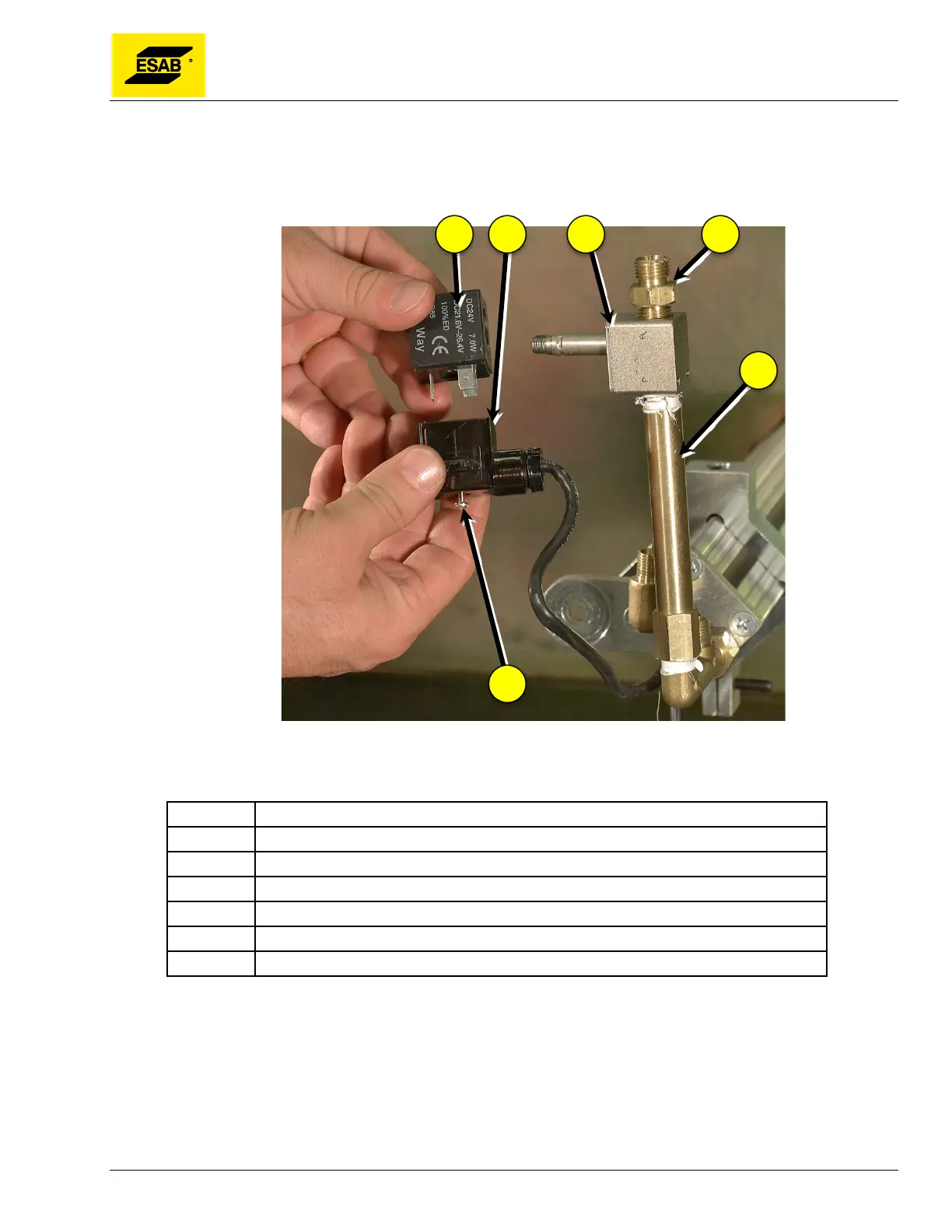

Figure 135: Removing Solenoid Coil
Number Description
1 Solenoid Coil
2 Coil Socket
3 Valve Body
4 Hose fitting
5 Valve mounting pipe
6 Anchor Screw
1
4
3
2
5
6
