ESAB Cutting Systems
CROSSBOW Page 42
Step 4 Install Secondary Torch Holder
This step is only required if the machine will be equipped with both oxy-fuel and plasma torches. The
secondary torch holder is used to hold the torch that is not in use.
Insert the supplied M8 screw through the hole in the mounting tang on the back side of Cross Beam,
and into the threaded hole on torch holder. Adjust torch holder until it is horizontal and then tighten
screw.

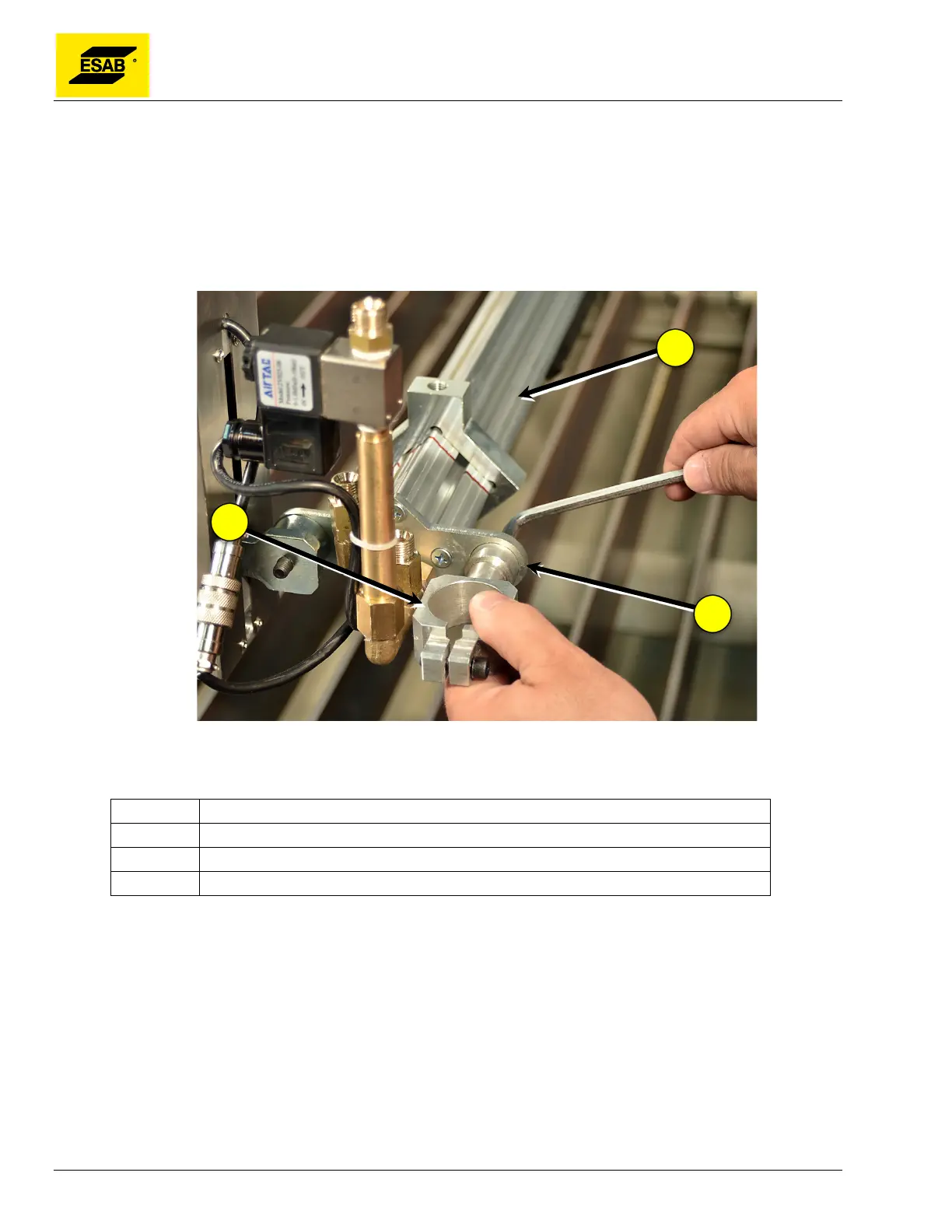

Figure 18: Installing Secondary Torch Holder
Number Description
1 Secondary Torch Holder
2 Cross Beam
3 Lift Mounting Tang, Cross Beam
