212 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units

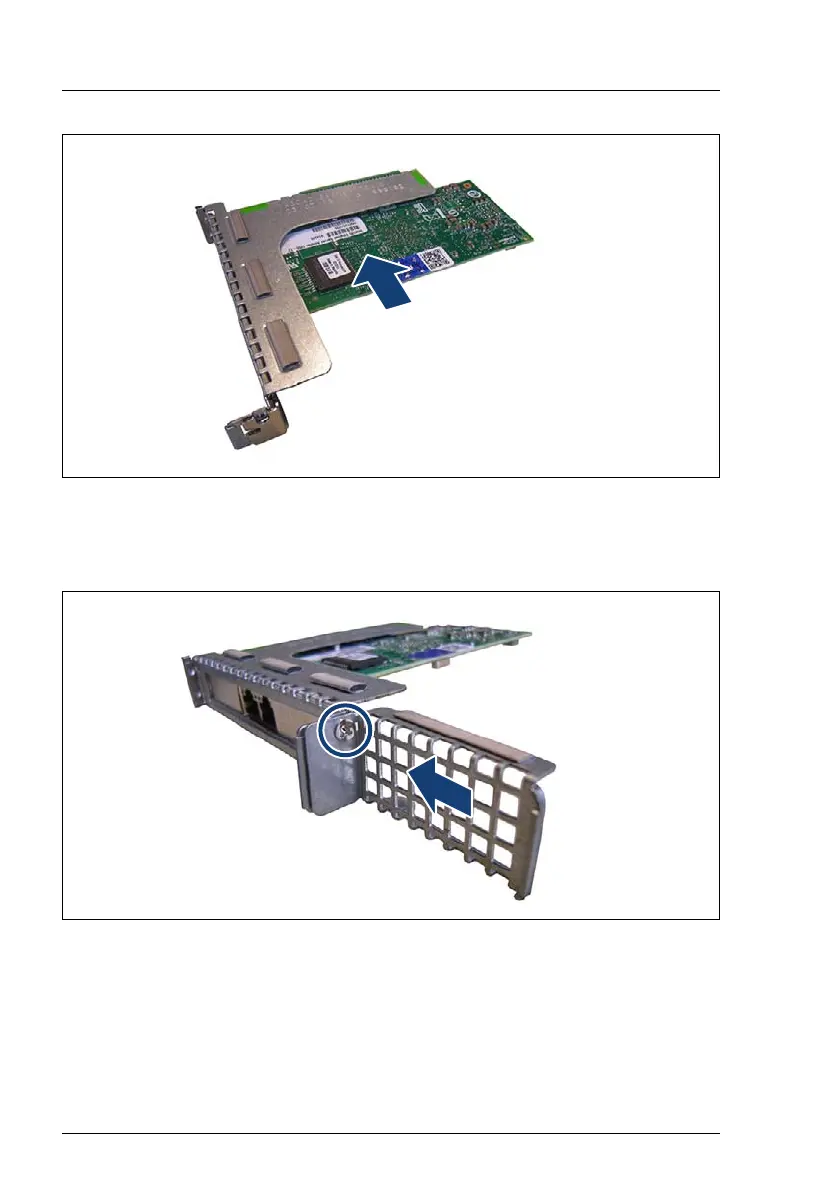

Figure 128: Installing the expansion card - example full height riser module
Ê Install the expansion card as described in section "Installing the expansion
card" on page 198.
Figure 129: Installing the extension bracket
Ê Fasten the extension bracket with one screw to the full height riser module
(see circle).
