RX200 S8
Upgrade and Maintenance Manual 143
Expansion cards and backup units

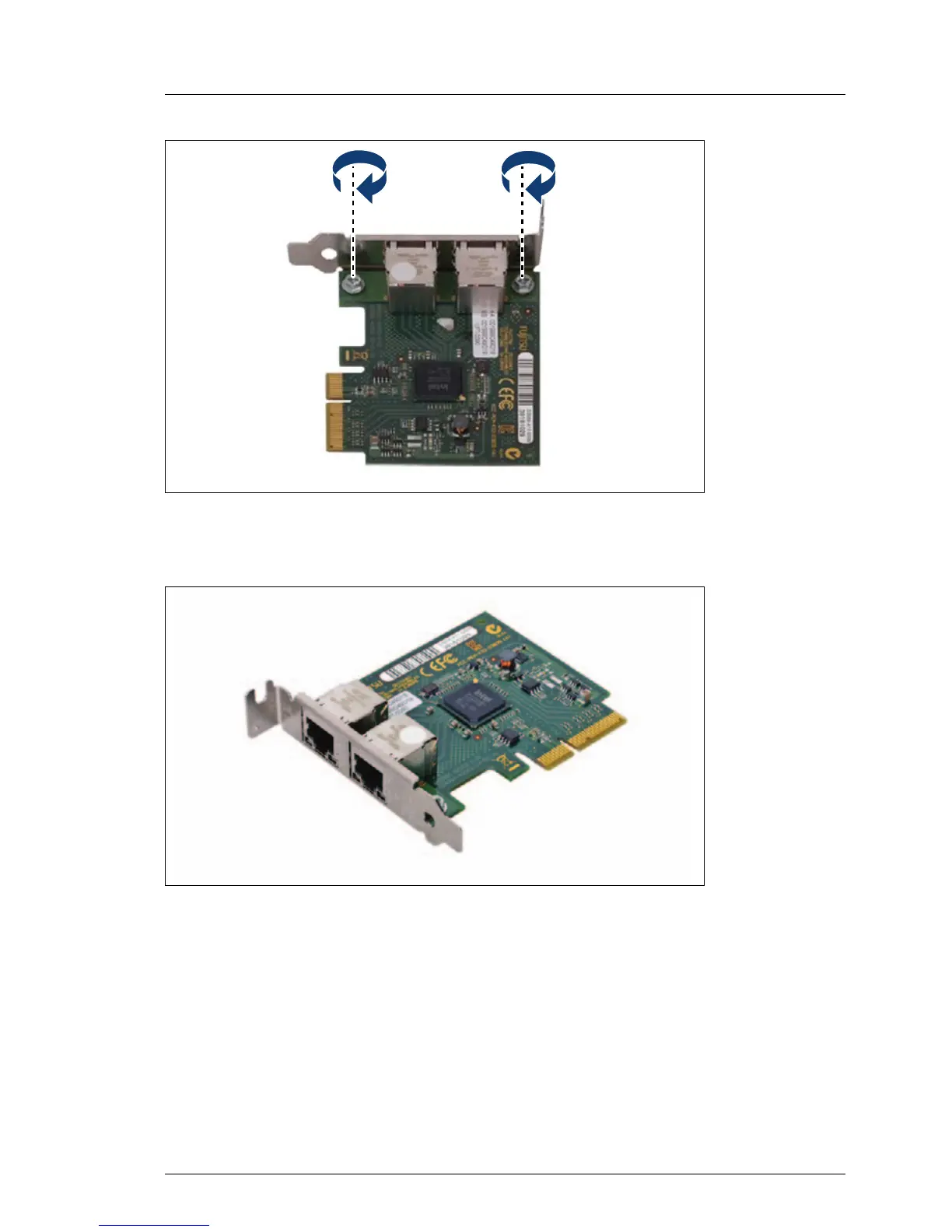

Figure 70: Fastening the slot bracket - D3035
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 71: Assembled network adapter D3035
